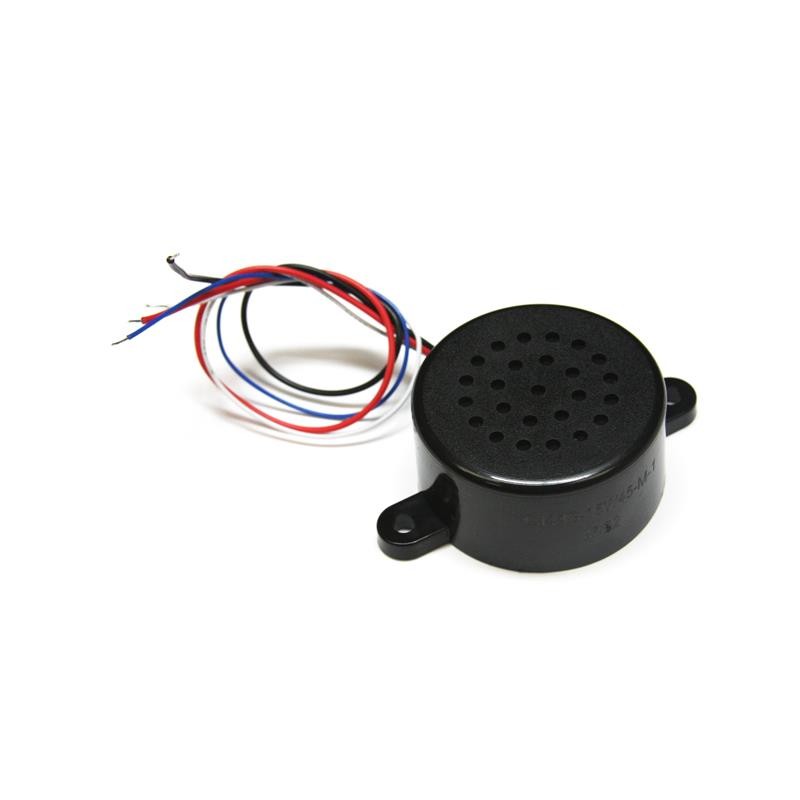

    1 pcs : CI44S-15W45-M-1 - Buzzers Indicator, Internally Driven 10 V 60mA 450Hz 65dB @ 10V, 100cm Panel Mount, Flange Wire Leads
    • 1 pcs : CI44S-15W45-M-1 - Buzzers Indicator, Internally Driven 10 V 60mA 450Hz 65dB @ 10V, 100cm Panel Mount, Flange Wire Leads

    1 pcs : CI44S-15W45-M-1 - Buzzers Indicator, Internally Driven 10 V 60mA 450Hz 65dB @ 10V, 100cm Panel Mount, Flange Wire Leads

    Allparts-UK/DG/CI44S-15W45-M-1
    £24.21
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Indicator, Internally Driven 10 V 60mA 450Hz 65dB @ 10V, 100cm Panel Mount, Flange Wire Leads
    Product Details
    Challenge Electronics
    Allparts-UK/DG/CI44S-15W45-M-1
    CI44S-15W45-M-1
    10 Items

    Data sheet

    Manufacturer
    Challenge Electronics
    Operating temperature
    -20°C ~ 55°C
    Part status
    Active
    Frequency
    450Hz
    Series
    -
    Mounting Type
    Panel Mount, Flange
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    8 ~ 15V
    Technology
    -
    Packaging
    Tray
    Size / Dimension
    1.732' Dia (44.00mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Multiple Tone
    Duration
    -
    Sound Pressure Level (SPL)
    65dB @ 10V, 100cm
    Current - Supply
    60mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    Medical
    Height - Seated (Max)
    0.886' (22.50mm)
    Voltage - Rated
    10 V
    Ingress Protection
    -
