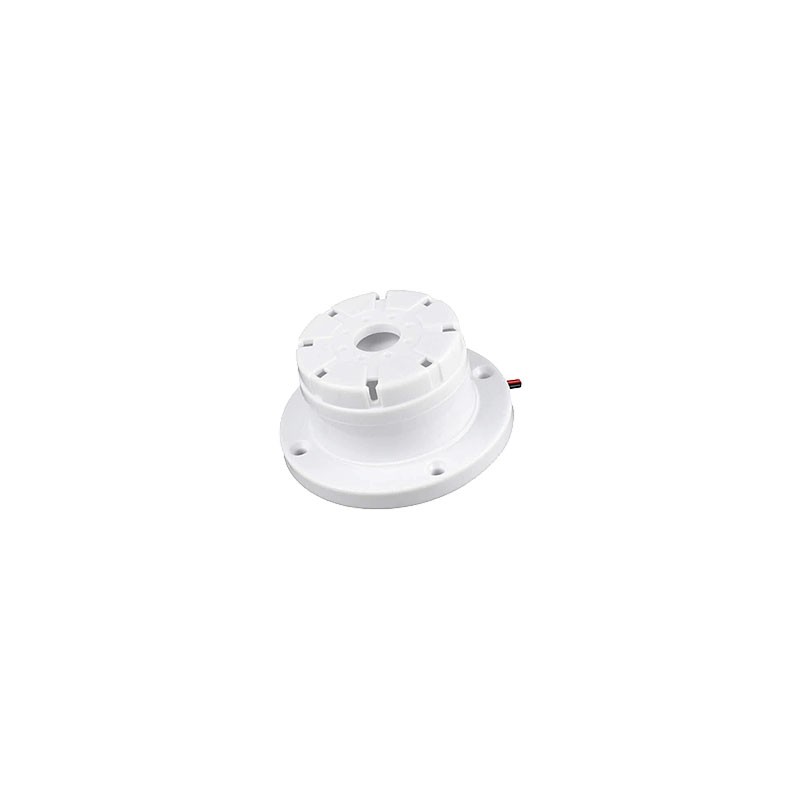

    1 pcs : CPS-8542-110PM - Buzzers Indicator, Internally Driven Piezo 24 V 250mA 3.5kHz 105dB @ 24V, 100cm Panel Mount Wire Leads
    • 1 pcs : CPS-8542-110PM - Buzzers Indicator, Internally Driven Piezo 24 V 250mA 3.5kHz 105dB @ 24V, 100cm Panel Mount Wire Leads

    1 pcs : CPS-8542-110PM - Buzzers Indicator, Internally Driven Piezo 24 V 250mA 3.5kHz 105dB @ 24V, 100cm Panel Mount Wire Leads

    electronicparts-UK/DG/CPS-8542-110PM
    £22.54
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Indicator, Internally Driven Piezo 24 V 250mA 3.5kHz 105dB @ 24V, 100cm Panel Mount Wire Leads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPS-8542-110PM
    CPS-8542-110PM
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    3.5kHz
    Series
    CPS
    Mounting Type
    Panel Mount
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    12 ~ 25V
    Technology
    Piezo
    Packaging
    Box
    Base Product Number
    CPS-8542
    Size / Dimension
    3.346' Dia (85.00mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Warble
    Sound Pressure Level (SPL)
    105dB @ 24V, 100cm
    Current - Supply
    250mA
    Port Location
    User Defined
    Height - Seated (Max)
    1.665' (42.30mm)
    Voltage - Rated
    24 V
