    1 pcs : CPS-5952-100PM - Buzzers Indicator, Internally Driven Piezo 24 V 100mA 3.5kHz 95dB @ 24V, 100cm Bracket Mount Wire Leads
    • 1 pcs : CPS-5952-100PM - Buzzers Indicator, Internally Driven Piezo 24 V 100mA 3.5kHz 95dB @ 24V, 100cm Bracket Mount Wire Leads

    1 pcs : CPS-5952-100PM - Buzzers Indicator, Internally Driven Piezo 24 V 100mA 3.5kHz 95dB @ 24V, 100cm Bracket Mount Wire Leads

    electronicparts-UK/DG/CPS-5952-100PM
    £19.98
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description

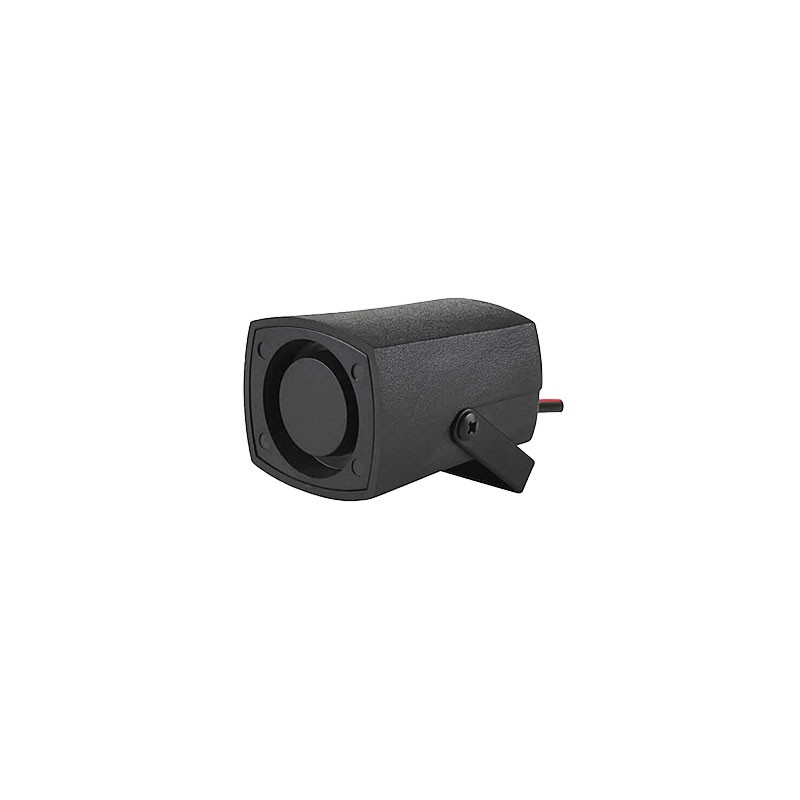

    Buzzers Indicator, Internally Driven Piezo 24 V 100mA 3.5kHz 95dB @ 24V, 100cm Bracket Mount Wire Leads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPS-5952-100PM
    CPS-5952-100PM
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    3.5kHz
    Series
    CPS
    Mounting Type
    Bracket Mount
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    12 ~ 25V
    Technology
    Piezo
    Packaging
    Box
    Base Product Number
    CPS-5952
    Size / Dimension
    1.772' L x 1.575' W (45.00mm x 40.00mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Warble
    Sound Pressure Level (SPL)
    95dB @ 24V, 100cm
    Current - Supply
    100mA
    Port Location
    User Defined
    Height - Seated (Max)
    2.335' (59.30mm)
    Voltage - Rated
    24 V
