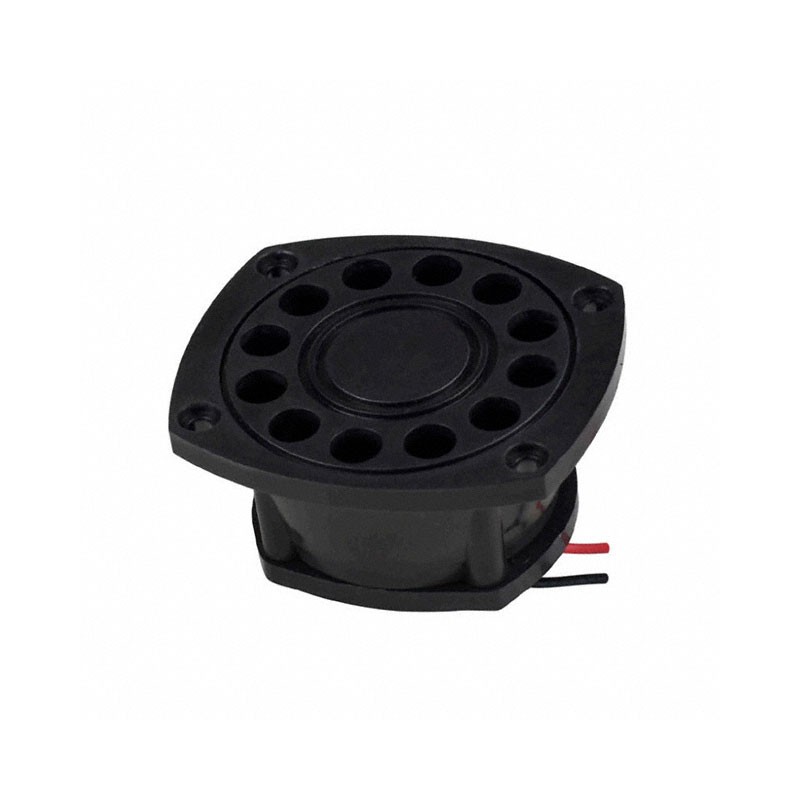

    1 pcs : CPT-5828-108L170 - Buzzers Transducer, Externally Driven Piezo 85 V 90mA 2.7kHz 103dB @ 85V, 30cm Panel Mount, Flange Wi
    • 1 pcs : CPT-5828-108L170 - Buzzers Transducer, Externally Driven Piezo 85 V 90mA 2.7kHz 103dB @ 85V, 30cm Panel Mount, Flange Wi

    1 pcs : CPT-5828-108L170 - Buzzers Transducer, Externally Driven Piezo 85 V 90mA 2.7kHz 103dB @ 85V, 30cm Panel Mount, Flange Wi

    electronicparts-UK/DG/CPT-5828-108L170
    £19.43
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 85 V 90mA 2.7kHz 103dB @ 85V, 30cm Panel Mount, Flange Wire Leads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPT-5828-108L170
    CPT-5828-108L170
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    2.7kHz
    Series
    CPT
    Mounting Type
    Panel Mount, Flange
    Input Type
    Peak-Peak Signal
    Termination
    Wire Leads
    Voltage Range
    3 ~ 85V
    Technology
    Piezo
    Packaging
    Box
    Base Product Number
    CPT-5828
    Size / Dimension
    2.303' L x 2.079' W (58.50mm x 52.80mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    103dB @ 85V, 30cm
    Current - Supply
    90mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    1.134' (28.80mm)
    Voltage - Rated
    85 V
    Ingress Protection
    -
