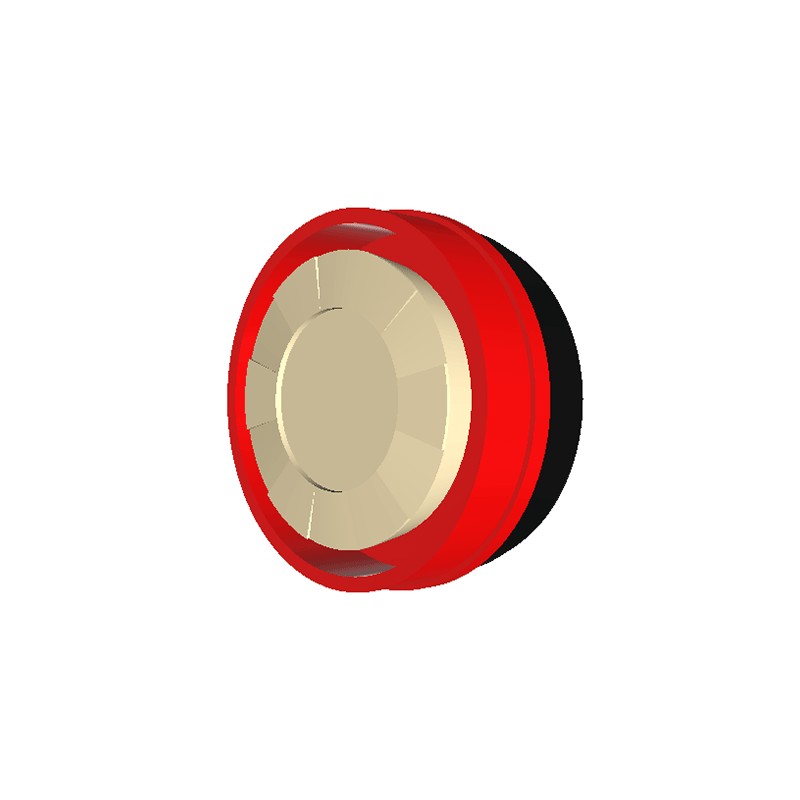

    1 pcs : AT-5535-T-R - Buzzers Transducer, Externally Driven Electromechanical/Magnetic 90 V 30mA 3kHz 115dB @ 90V, 10cm Surface
    • 1 pcs : AT-5535-T-R - Buzzers Transducer, Externally Driven Electromechanical/Magnetic 90 V 30mA 3kHz 115dB @ 90V, 10cm Surface

    1 pcs : AT-5535-T-R - Buzzers Transducer, Externally Driven Electromechanical/Magnetic 90 V 30mA 3kHz 115dB @ 90V, 10cm Surface

    Allparts-UK/DG/AT-5535-T-R
    £15.83
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Electromechanical/Magnetic 90 V 30mA 3kHz 115dB @ 90V, 10cm Surface Mount Solder Pads
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/AT-5535-T-R
    AT-5535-T-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -20°C ~ 60°C
    Part status
    Active
    Frequency
    3kHz
    Series
    AT
    Mounting Type
    Surface Mount
    Input Type
    Peak-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    12 ~ 150V
    Technology
    Electromechanical/Magnetic
    Packaging
    Box
    Size / Dimension
    2.146' Dia (54.50mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    115dB @ 90V, 10cm
    Current - Supply
    30mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.906' (23.00mm)
    Voltage - Rated
    90 V
    Ingress Protection
    -
