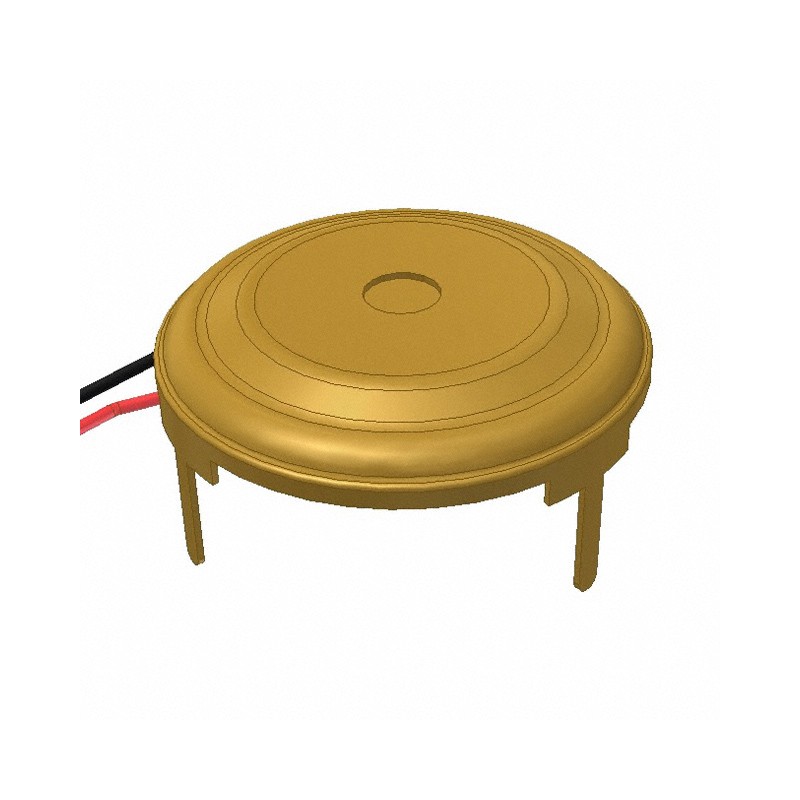

    1 pcs : AT-2250-T-LW50-R - Buzzers Transducer, Externally Driven Piezo 15 V 5mA 5kHz 92dB @ 15V, 10cm Through Hole PC Pins
    • 1 pcs : AT-2250-T-LW50-R - Buzzers Transducer, Externally Driven Piezo 15 V 5mA 5kHz 92dB @ 15V, 10cm Through Hole PC Pins

    1 pcs : AT-2250-T-LW50-R - Buzzers Transducer, Externally Driven Piezo 15 V 5mA 5kHz 92dB @ 15V, 10cm Through Hole PC Pins

    Allparts-UK/DG/AT-2250-T-LW50-R
    £13.30
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 15 V 5mA 5kHz 92dB @ 15V, 10cm Through Hole PC Pins
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/AT-2250-T-LW50-R
    AT-2250-T-LW50-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -20°C ~ 60°C
    Part status
    Active
    Frequency
    5kHz
    Series
    AT
    Mounting Type
    Through Hole
    Input Type
    Peak-Peak Signal
    Termination
    PC Pins
    Voltage Range
    1 ~ 30V
    Technology
    Piezo
    Packaging
    Bulk
    Size / Dimension
    0.866' Dia (22.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    92dB @ 15V, 10cm
    Current - Supply
    5mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.197' (5.00mm)
    Voltage - Rated
    15 V
