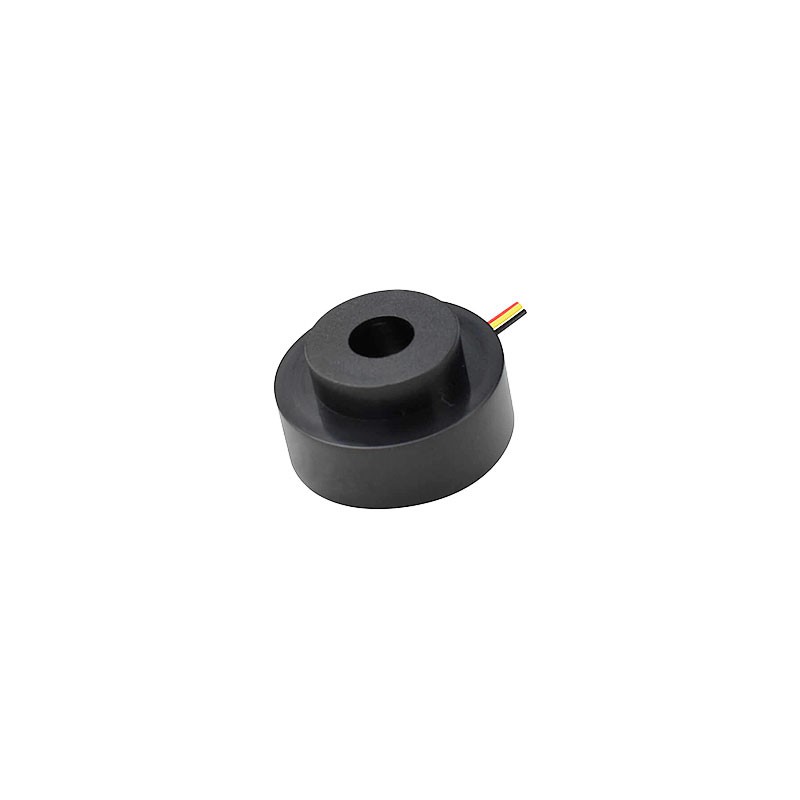

    1 pcs : CPS-3016-105L085 - Buzzers Transducer, Externally Driven Piezo 12 V 30mA 3.25kHz 105dB @ 12V, 10cm Custom Wire Leads
    • 1 pcs : CPS-3016-105L085 - Buzzers Transducer, Externally Driven Piezo 12 V 30mA 3.25kHz 105dB @ 12V, 10cm Custom Wire Leads

    1 pcs : CPS-3016-105L085 - Buzzers Transducer, Externally Driven Piezo 12 V 30mA 3.25kHz 105dB @ 12V, 10cm Custom Wire Leads

    electronicparts-UK/DG/CPS-3016-105L085
    £12.57
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 12 V 30mA 3.25kHz 105dB @ 12V, 10cm Custom Wire Leads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPS-3016-105L085
    CPS-3016-105L085
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Frequency
    3.25kHz
    Series
    CPS
    Mounting Type
    Custom
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    6 ~ 16V
    Technology
    Piezo
    Packaging
    Tray
    Base Product Number
    CPS-3016
    Size / Dimension
    1.205' Dia (30.60mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Sound Pressure Level (SPL)
    105dB @ 12V, 10cm
    Current - Supply
    30mA
    Port Location
    Top
    Height - Seated (Max)
    0.650' (16.50mm)
    Voltage - Rated
    12 V
