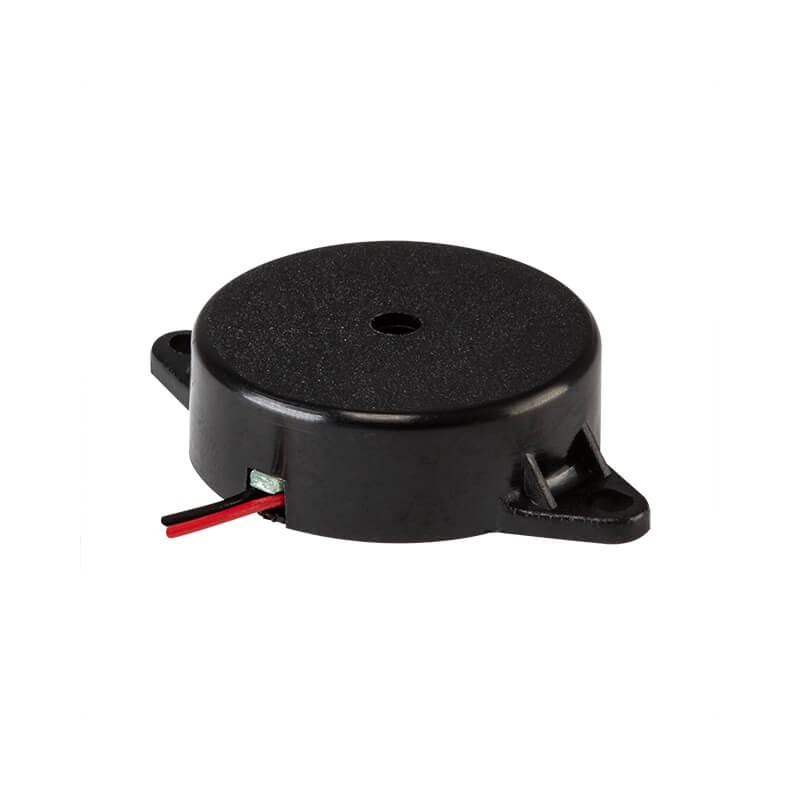

    1 pcs : CPT-3010-95-L200 - Buzzers Transducer, Externally Driven Piezo 12 V 20mA 3.3kHz 105dB @ 12V, 10cm Panel Mount, Flange Wi
    • 1 pcs : CPT-3010-95-L200 - Buzzers Transducer, Externally Driven Piezo 12 V 20mA 3.3kHz 105dB @ 12V, 10cm Panel Mount, Flange Wi

    1 pcs : CPT-3010-95-L200 - Buzzers Transducer, Externally Driven Piezo 12 V 20mA 3.3kHz 105dB @ 12V, 10cm Panel Mount, Flange Wi

    electronicparts-UK/DG/CPT-3010-95-L200
    £12.18
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 12 V 20mA 3.3kHz 105dB @ 12V, 10cm Panel Mount, Flange Wire Leads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPT-3010-95-L200
    CPT-3010-95-L200
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Frequency
    3.3kHz
    Series
    CPT
    Mounting Type
    Panel Mount, Flange
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    30V
    Technology
    Piezo
    Packaging
    Tray
    Size / Dimension
    1.181' Dia (30.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    105dB @ 12V, 10cm
    Current - Supply
    20mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.413' (10.50mm)
    Voltage - Rated
    12 V
    Ingress Protection
    -
