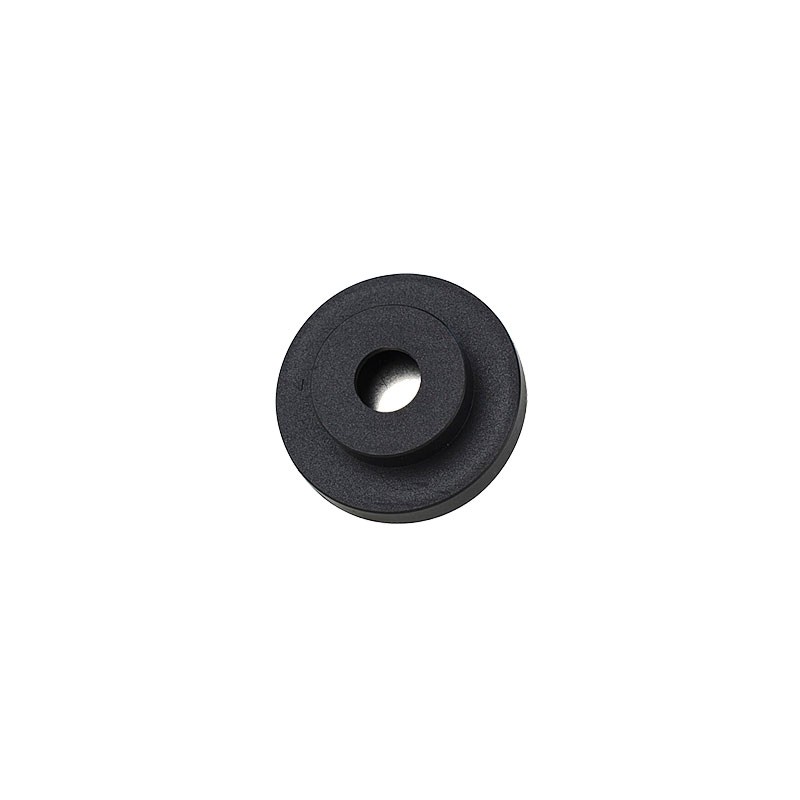

    1 pcs : CPS-4013-110T - Buzzers Transducer, Externally Driven Piezo 9 V 50mA 3.2kHz 115dB @ 9V, 30cm Through Hole PC Pins
    • 1 pcs : CPS-4013-110T - Buzzers Transducer, Externally Driven Piezo 9 V 50mA 3.2kHz 115dB @ 9V, 30cm Through Hole PC Pins

    1 pcs : CPS-4013-110T - Buzzers Transducer, Externally Driven Piezo 9 V 50mA 3.2kHz 115dB @ 9V, 30cm Through Hole PC Pins

    electronicparts-UK/DG/CPS-4013-110T
    £12.15
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 9 V 50mA 3.2kHz 115dB @ 9V, 30cm Through Hole PC Pins
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPS-4013-110T
    CPS-4013-110T
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -20°C ~ 60°C
    Part status
    Active
    Frequency
    3.2kHz
    Series
    CPS
    Mounting Type
    Through Hole
    Input Type
    DC
    Termination
    PC Pins
    Voltage Range
    6 ~ 12V
    Technology
    Piezo
    Packaging
    Tray
    Base Product Number
    CPS-4013
    Size / Dimension
    1.575' Dia (40.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Sound Pressure Level (SPL)
    115dB @ 9V, 30cm
    Current - Supply
    50mA
    Port Location
    Top
    Height - Seated (Max)
    0.516' (13.10mm)
    Voltage - Rated
    9 V
