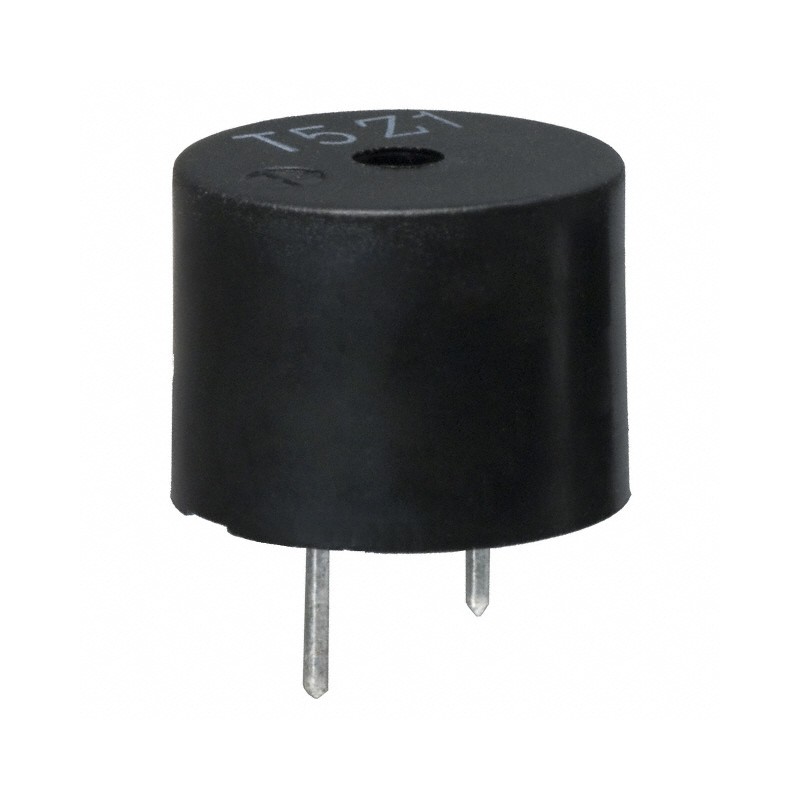

    1 pcs : SD1209T5-A1 - Buzzers Transducer, Externally Driven Magnetic 5 V 60mA 2.048kHz 80dB @ 5V, 10cm Through Hole PC Pins
    • 1 pcs : SD1209T5-A1 - Buzzers Transducer, Externally Driven Magnetic 5 V 60mA 2.048kHz 80dB @ 5V, 10cm Through Hole PC Pins

    1 pcs : SD1209T5-A1 - Buzzers Transducer, Externally Driven Magnetic 5 V 60mA 2.048kHz 80dB @ 5V, 10cm Through Hole PC Pins

    Allparts-UK/DG/SD1209T5-A1
    £11.80
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Magnetic 5 V 60mA 2.048kHz 80dB @ 5V, 10cm Through Hole PC Pins
    Product Details
    TDK Corporation
    Allparts-UK/DG/SD1209T5-A1
    SD1209T5-A1
    10 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Operating temperature
    -40°C ~ 85°C
    Part status
    Last Time Buy
    Frequency
    2.048kHz
    Series
    SD
    Mounting Type
    Through Hole
    Input Type
    Zero-Peak Signal
    Termination
    PC Pins
    Voltage Range
    3 ~ 6V
    Technology
    Magnetic
    Packaging
    Tray
    Size / Dimension
    0.472' Dia (12.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    80dB @ 5V, 10cm
    Current - Supply
    60mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.354' (9.00mm)
    Voltage - Rated
    5 V
