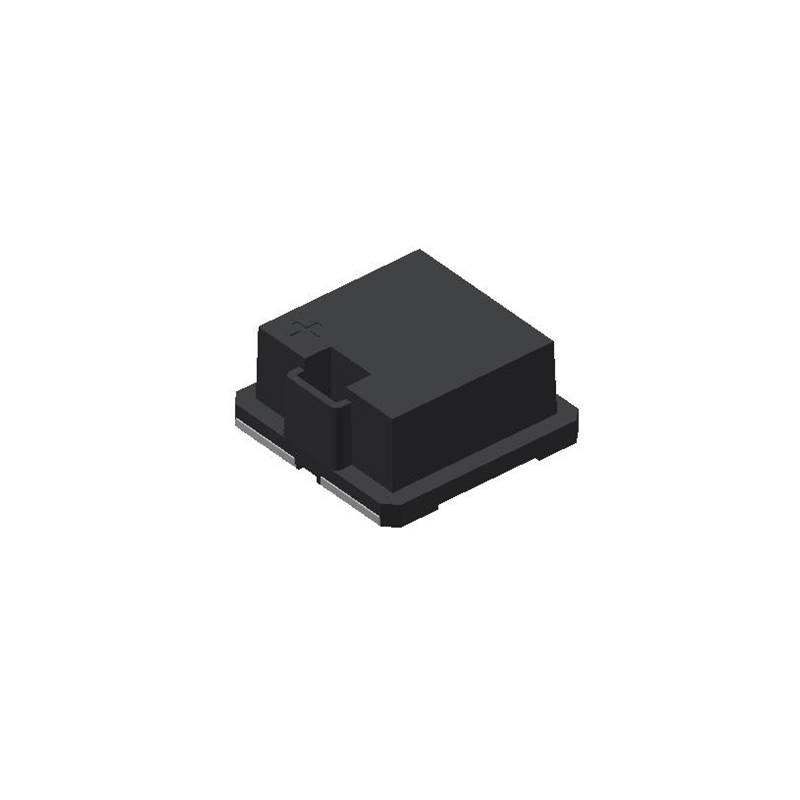

    1 pcs : SMT-1820-T-12V-R - Buzzers Transducer, Externally Driven Piezo 12 V 15mA 2kHz 90dB @ 12V, 10cm Surface Mount Solder Pads
    • 1 pcs : SMT-1820-T-12V-R - Buzzers Transducer, Externally Driven Piezo 12 V 15mA 2kHz 90dB @ 12V, 10cm Surface Mount Solder Pads

    1 pcs : SMT-1820-T-12V-R - Buzzers Transducer, Externally Driven Piezo 12 V 15mA 2kHz 90dB @ 12V, 10cm Surface Mount Solder Pads

    Allparts-UK/DG/SMT-1820-T-12V-R
    £10.92
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 12 V 15mA 2kHz 90dB @ 12V, 10cm Surface Mount Solder Pads
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/SMT-1820-T-12V-R
    SMT-1820-T-12V-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -40°C ~ 105°C
    Part status
    Active
    Frequency
    2kHz
    Series
    SMT
    Mounting Type
    Surface Mount
    Input Type
    Peak-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    1 ~ 25V
    Technology
    Piezo
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Size / Dimension
    0.709' L x 0.709' W (18.00mm x 18.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Sound Pressure Level (SPL)
    90dB @ 12V, 10cm
    Current - Supply
    15mA
    Port Location
    Top
    Height - Seated (Max)
    0.335' (8.50mm)
    Voltage - Rated
    12 V
