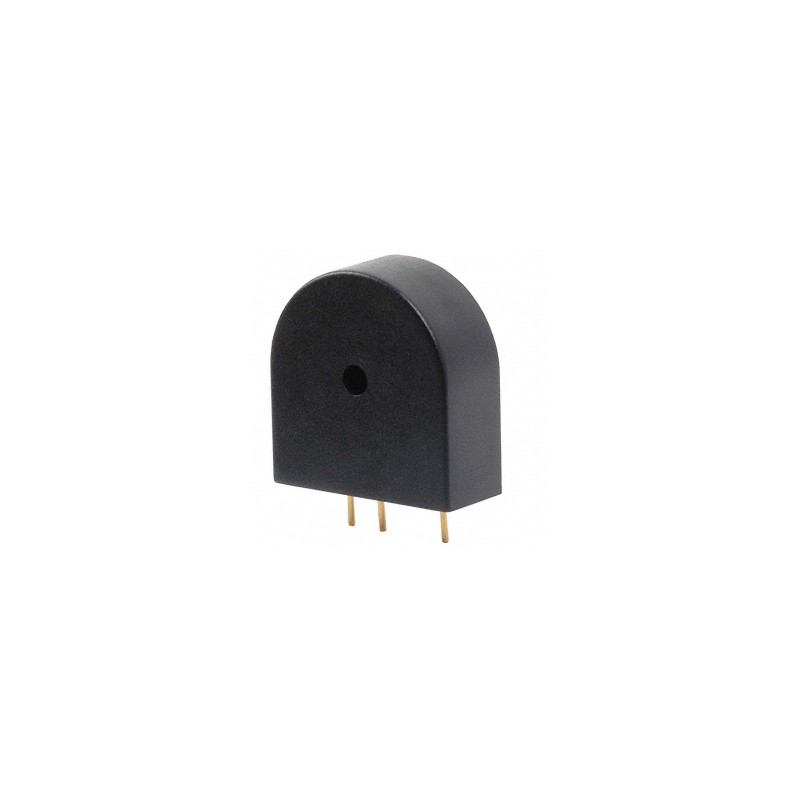

    1 pcs : CPE-503 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 7mA 3.2kHz 72dB @ 12V, 30cm Through Hole PC P
    • 1 pcs : CPE-503 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 7mA 3.2kHz 72dB @ 12V, 30cm Through Hole PC P

    1 pcs : CPE-503 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 7mA 3.2kHz 72dB @ 12V, 30cm Through Hole PC P

    electronicparts-UK/DG/CPE-503
    £11.12
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 7mA 3.2kHz 72dB @ 12V, 30cm Through Hole PC Pins
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPE-503
    CPE-503
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -30°C ~ 115°C
    Part status
    Active
    Frequency
    3.2kHz
    Series
    CPE
    Mounting Type
    Through Hole
    Input Type
    DC
    Termination
    PC Pins
    Voltage Range
    3 ~ 28V
    Technology
    Piezo (with Feedback)
    Packaging
    Tray
    Base Product Number
    CPE
    Size / Dimension
    0.945' L x 0.394' W (24.00mm x 10.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    72dB @ 12V, 30cm
    Current - Supply
    7mA
    Port Location
    Side
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    1.004' (25.50mm)
    Voltage - Rated
    12 V
