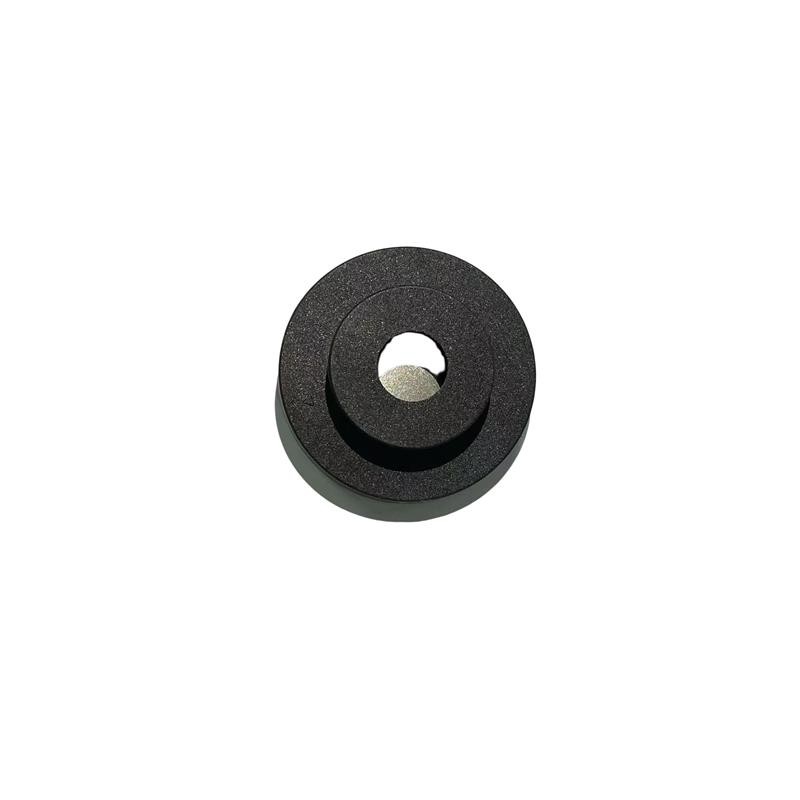

    1 pcs : OWPB-4013PA-32-9 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 9 V 50mA 3.2kHz 110dB @ 9V, 10cm Through
    • 1 pcs : OWPB-4013PA-32-9 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 9 V 50mA 3.2kHz 110dB @ 9V, 10cm Through

    1 pcs : OWPB-4013PA-32-9 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 9 V 50mA 3.2kHz 110dB @ 9V, 10cm Through

    Allparts-UK/DG/OWPB-4013PA-32-9
    £10.87
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo (with Feedback) 9 V 50mA 3.2kHz 110dB @ 9V, 10cm Through Hole PC Pins
    Product Details
    Ole Wolff Electronics Inc
    Allparts-UK/DG/OWPB-4013PA-32-9
    OWPB-4013PA-32-9
    10 Items

    Data sheet

    Manufacturer
    Ole Wolff Electronics Inc
    Operating temperature
    -30°C ~ 70°C
    Part status
    Active
    Frequency
    3.2kHz
    Series
    -
    Mounting Type
    Through Hole
    Input Type
    DC
    Termination
    PC Pins
    Voltage Range
    6 ~ 12V
    Technology
    Piezo (with Feedback)
    Packaging
    Bulk
    Size / Dimension
    1.575' Dia (40.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Sound Pressure Level (SPL)
    110dB @ 9V, 10cm
    Current - Supply
    50mA
    Port Location
    Top
    Height - Seated (Max)
    0.496' (12.60mm)
    Voltage - Rated
    9 V
