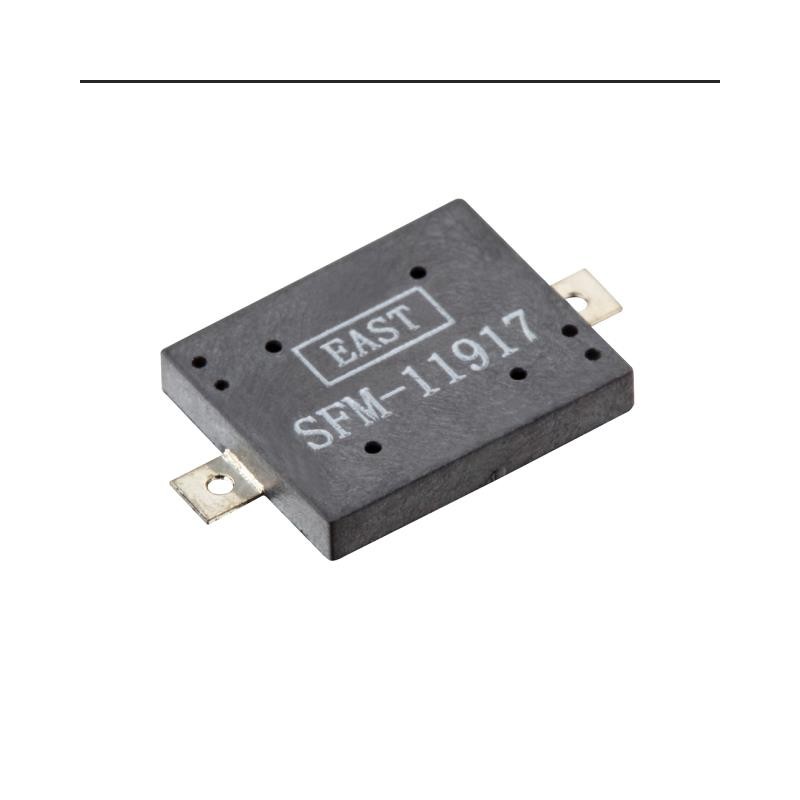

1 pcs : SFM-11917 - Buzzers Transducer, Externally Driven Piezo 3 V 3.5mA 4.1kHz 50.5dB @ 3V, 30cm Surface Mount Solder Pads
  • 1 pcs : SFM-11917 - Buzzers Transducer, Externally Driven Piezo 3 V 3.5mA 4.1kHz 50.5dB @ 3V, 30cm Surface Mount Solder Pads

1 pcs : SFM-11917 - Buzzers Transducer, Externally Driven Piezo 3 V 3.5mA 4.1kHz 50.5dB @ 3V, 30cm Surface Mount Solder Pads

electronicparts-UK/DG/SFM-11917
£10.84
Quantity
Out-of-Stock

Description
Buzzers Transducer, Externally Driven Piezo 3 V 3.5mA 4.1kHz 50.5dB @ 3V, 30cm Surface Mount Solder Pads
Product Details
East Electronics
electronicparts-UK/DG/SFM-11917
SFM-11917

Data sheet

Manufacturer
East Electronics
Operating temperature
-20°C ~ 85°C
Part status
Active
Frequency
4.1kHz
Series
SFM
Mounting Type
Surface Mount
Input Type
Peak-Peak Signal
Termination
Solder Pads
Voltage Range
1 ~ 25V
Technology
Piezo
Packaging
Box
Size / Dimension
0.433' L x 0.354' W (11.00mm x 9.00mm)
Driver Circuitry
Transducer, Externally Driven
Operating Mode
Single Tone
Duration
-
Sound Pressure Level (SPL)
50.5dB @ 3V, 30cm
Current - Supply
3.5mA
Port Location
Top
Approval Agency
-
Ratings
-
Height - Seated (Max)
0.067' (1.70mm)
Voltage - Rated
3 V
Ingress Protection
-
