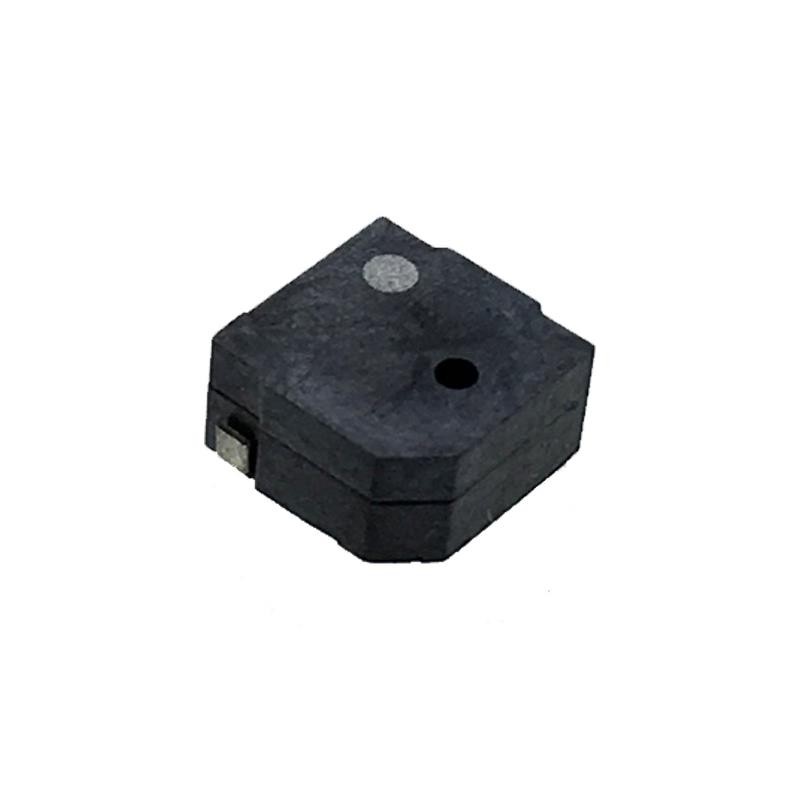

    1 pcs : RDTE-4.000-5050-NS2 - Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder
    • 1 pcs : RDTE-4.000-5050-NS2 - Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder

    1 pcs : RDTE-4.000-5050-NS2 - Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder

    electronicparts-UK/DG/RDTE-4.000-5050-NS2
    £10.73
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
    Product Details
    Raltron Electronics
    electronicparts-UK/DG/RDTE-4.000-5050-NS2
    RDTE-4.000-5050-NS2
    10 Items

    Data sheet

    Manufacturer
    Raltron Electronics
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    4kHz
    Series
    RDTE
    Mounting Type
    Surface Mount
    Input Type
    Zero-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    2 ~ 4V
    Technology
    Magnetic
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Size / Dimension
    0.197' L x 0.197' W (5.00mm x 5.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    75dB @ 3V, 10cm
    Current - Supply
    110mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.083' (2.10mm)
    Voltage - Rated
    3 V
    Ingress Protection
    -
