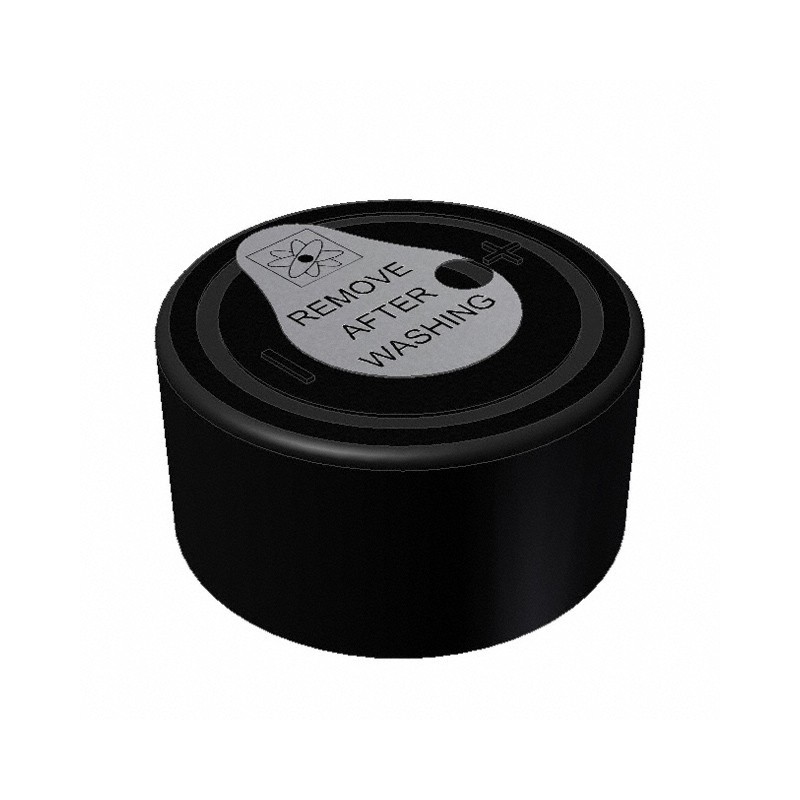

    1 pcs : AT-2428-TWT-R - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 8mA 3kHz 92dB @ 12V, 10cm Through Hole
    • 1 pcs : AT-2428-TWT-R - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 8mA 3kHz 92dB @ 12V, 10cm Through Hole

    1 pcs : AT-2428-TWT-R - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 8mA 3kHz 92dB @ 12V, 10cm Through Hole

    Allparts-UK/DG/AT-2428-TWT-R
    £10.62
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 8mA 3kHz 92dB @ 12V, 10cm Through Hole PC Pins
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/AT-2428-TWT-R
    AT-2428-TWT-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -20°C ~ 85°C
    Part status
    Active
    Frequency
    3kHz
    Series
    AT
    Mounting Type
    Through Hole
    Input Type
    Peak-Peak Signal
    Termination
    PC Pins
    Voltage Range
    3 ~ 28V
    Technology
    Piezo (with Feedback)
    Packaging
    Bulk
    Size / Dimension
    0.945' Dia (24.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    92dB @ 12V, 10cm
    Current - Supply
    8mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    Washable
    Height - Seated (Max)
    0.492' (12.50mm)
    Voltage - Rated
    12 V
