    1 pcs : AT-3045-TF-LW110-R - Buzzers Transducer, Externally Driven Piezo 10 V 11mA 4.5kHz 97dB @ 10V, 10cm Panel Mount, Flange W
    • 1 pcs : AT-3045-TF-LW110-R - Buzzers Transducer, Externally Driven Piezo 10 V 11mA 4.5kHz 97dB @ 10V, 10cm Panel Mount, Flange W

    1 pcs : AT-3045-TF-LW110-R - Buzzers Transducer, Externally Driven Piezo 10 V 11mA 4.5kHz 97dB @ 10V, 10cm Panel Mount, Flange W

    Allparts-UK/DG/AT-3045-TF-LW110-R
    £10.58
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description

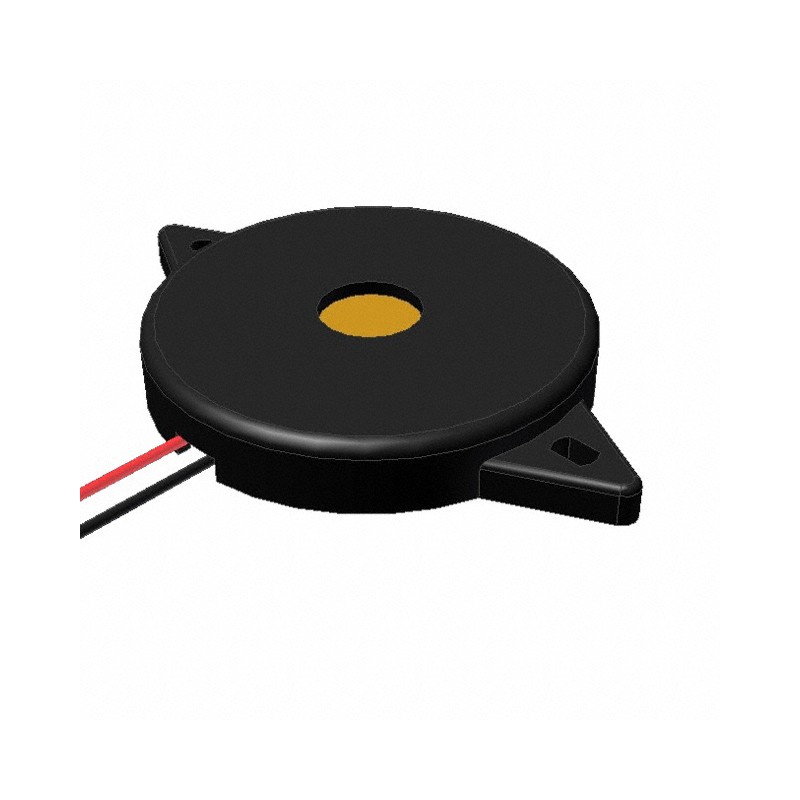

    Buzzers Transducer, Externally Driven Piezo 10 V 11mA 4.5kHz 97dB @ 10V, 10cm Panel Mount, Flange Wire Leads
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/AT-3045-TF-LW110-R
    AT-3045-TF-LW110-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -30°C ~ 85°C
    Part status
    Active
    Frequency
    4.5kHz
    Series
    AT
    Mounting Type
    Panel Mount, Flange
    Input Type
    Peak-Peak Signal
    Termination
    Wire Leads
    Voltage Range
    1 ~ 50V
    Technology
    Piezo
    Packaging
    Bulk
    Size / Dimension
    1.181' Dia (30.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    97dB @ 10V, 10cm
    Current - Supply
    11mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.220' (5.60mm)
    Voltage - Rated
    10 V
