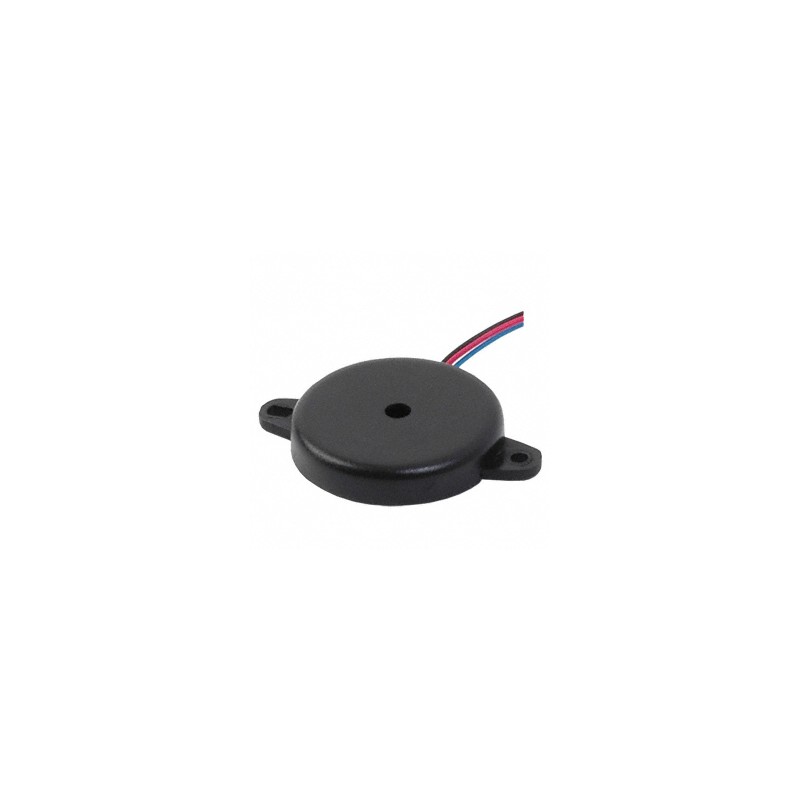

    1 pcs : CPE-121 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 13mA 4.5kHz 83dB @ 12V, 30cm Panel Mount, Fla
    • 1 pcs : CPE-121 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 13mA 4.5kHz 83dB @ 12V, 30cm Panel Mount, Fla

    1 pcs : CPE-121 - Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 13mA 4.5kHz 83dB @ 12V, 30cm Panel Mount, Fla

    electronicparts-UK/DG/CPE-121
    £9.83
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 13mA 4.5kHz 83dB @ 12V, 30cm Panel Mount, Flange Wire Leads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPE-121
    CPE-121
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -30°C ~ 85°C
    Part status
    Active
    Frequency
    4.5kHz
    Series
    CPE
    Mounting Type
    Panel Mount, Flange
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    3 ~ 18V
    Technology
    Piezo (with Feedback)
    Packaging
    Bag
    Base Product Number
    CPE
    Size / Dimension
    0.945' Dia (24.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    83dB @ 12V, 30cm
    Current - Supply
    13mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.217' (5.50mm)
    Voltage - Rated
    12 V
