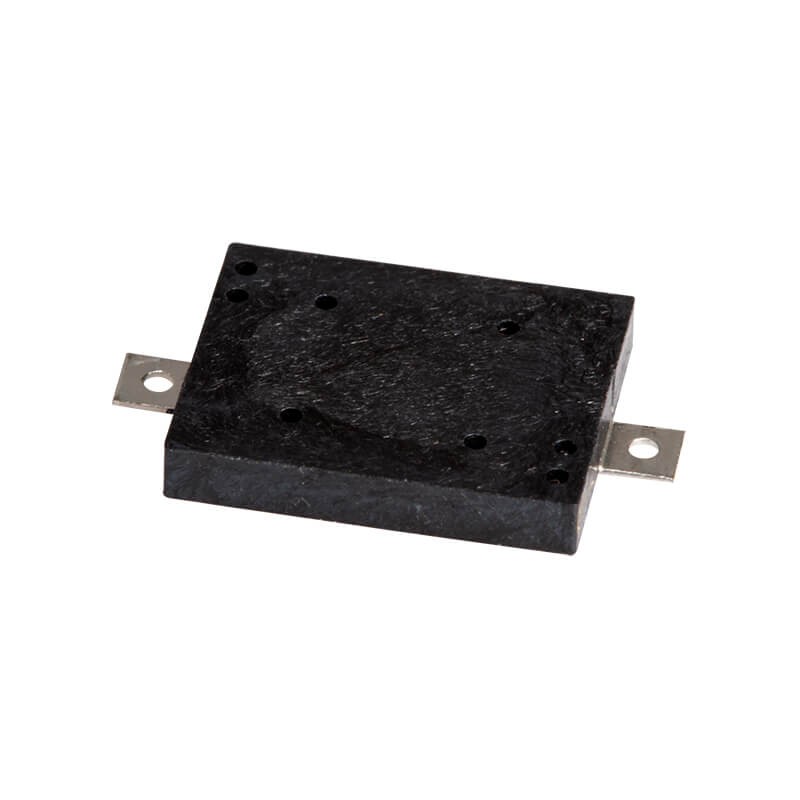

    1 pcs : CPT-1117-83-SMT-TR - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 4.1kHz 83dB @ 5V, 10cm Surface Mount Solder Pad
    • 1 pcs : CPT-1117-83-SMT-TR - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 4.1kHz 83dB @ 5V, 10cm Surface Mount Solder Pad

    1 pcs : CPT-1117-83-SMT-TR - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 4.1kHz 83dB @ 5V, 10cm Surface Mount Solder Pad

    electronicparts-UK/DG/CPT-1117-83-SMT-TR
    £10.86
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 5 V 3mA 4.1kHz 83dB @ 5V, 10cm Surface Mount Solder Pads
    Product Details
    CUI Devices
    electronicparts-UK/DG/CPT-1117-83-SMT-TR
    CPT-1117-83-SMT-TR
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Frequency
    4.1kHz
    Series
    CPT
    Mounting Type
    Surface Mount
    Input Type
    Peak-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    1 ~ 25V
    Technology
    Piezo
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    CPT-1117
    Size / Dimension
    0.433' L x 0.354' W (11.00mm x 9.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    83dB @ 5V, 10cm
    Current - Supply
    3mA
    Port Location
    Side
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.087' (2.20mm)
    Voltage - Rated
    5 V
    Ingress Protection
    -
