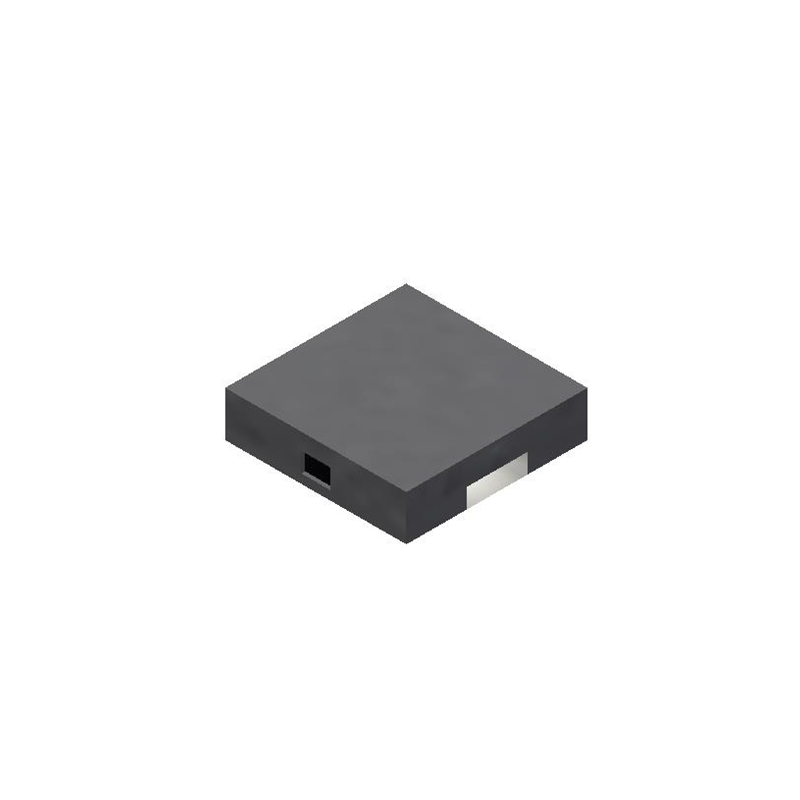

    1 pcs : SMTB-1240-S-R - Buzzers Transducer, Externally Driven Piezo 3 V 3mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
    • 1 pcs : SMTB-1240-S-R - Buzzers Transducer, Externally Driven Piezo 3 V 3mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads

    1 pcs : SMTB-1240-S-R - Buzzers Transducer, Externally Driven Piezo 3 V 3mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads

    Allparts-UK/DG/SMTB-1240-S-R
    £10.79
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 3 V 3mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/SMTB-1240-S-R
    SMTB-1240-S-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Frequency
    4kHz
    Series
    SMTB
    Mounting Type
    Surface Mount
    Input Type
    Peak-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    1 ~ 25V
    Technology
    Piezo
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Size / Dimension
    0.472' L x 0.472' W (12.00mm x 12.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Sound Pressure Level (SPL)
    75dB @ 3V, 10cm
    Current - Supply
    3mA
    Port Location
    Side
    Height - Seated (Max)
    0.130' (3.30mm)
    Voltage - Rated
    3 V
