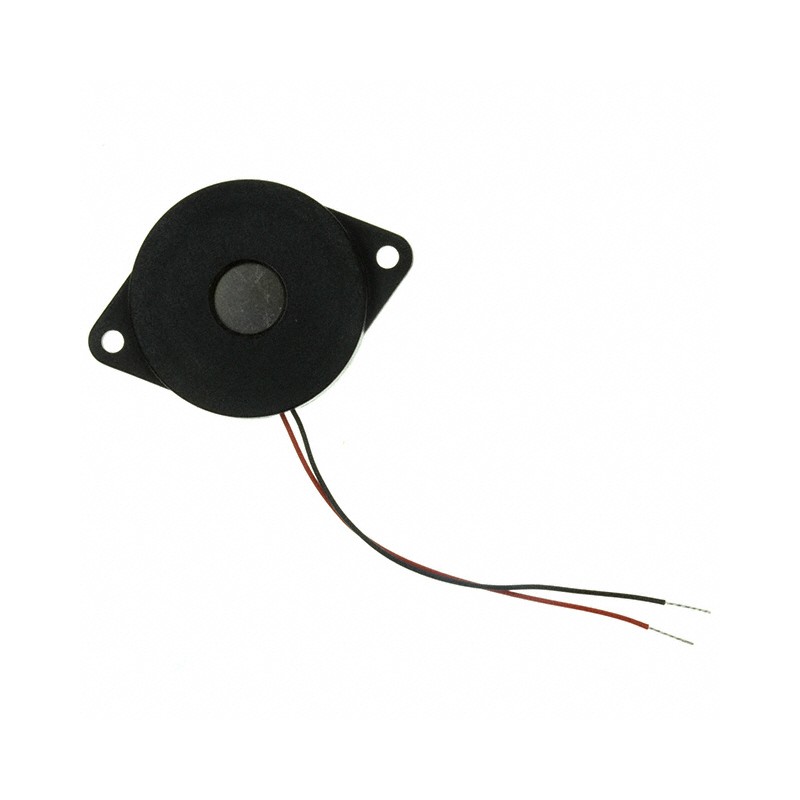

    1 pcs : PT-2404 - Buzzers Transducer, Externally Driven Piezo 15 V 8mA 4.8kHz 85dB @ 4.8V, 10cm Panel Mount, Flange Wire Leads
    • 1 pcs : PT-2404 - Buzzers Transducer, Externally Driven Piezo 15 V 8mA 4.8kHz 85dB @ 4.8V, 10cm Panel Mount, Flange Wire Leads

    1 pcs : PT-2404 - Buzzers Transducer, Externally Driven Piezo 15 V 8mA 4.8kHz 85dB @ 4.8V, 10cm Panel Mount, Flange Wire Leads

    Allparts-UK/DG/PT-2404
    £10.64
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 15 V 8mA 4.8kHz 85dB @ 4.8V, 10cm Panel Mount, Flange Wire Leads
    Product Details
    Soberton Inc.
    Allparts-UK/DG/PT-2404
    PT-2404
    10 Items

    Data sheet

    Manufacturer
    Soberton Inc.
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    4.8kHz
    Series
    PT
    Mounting Type
    Panel Mount, Flange
    Input Type
    Peak-Peak Signal
    Termination
    Wire Leads
    Voltage Range
    1 ~ 12V
    Technology
    Piezo
    Packaging
    Tray
    Size / Dimension
    0.945' Dia (24.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    85dB @ 4.8V, 10cm
    Current - Supply
    8mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.217' (5.50mm)
    Voltage - Rated
    15 V
