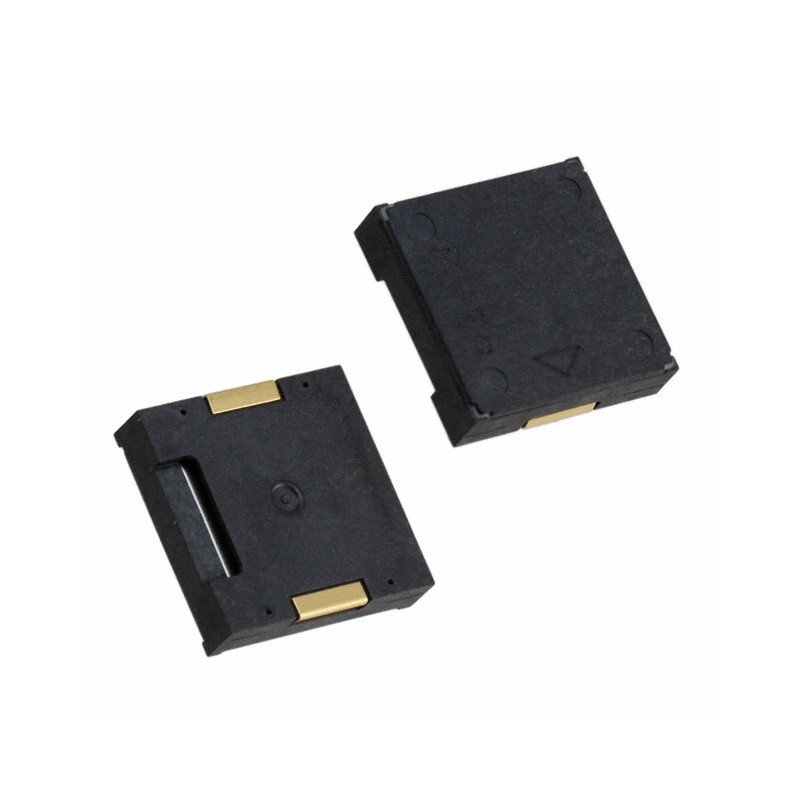

    1 pcs : PKLCS1212E4001-R1 - Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 84dB @ 1.5V, 10cm Surface Mount Solder Pads
    • 1 pcs : PKLCS1212E4001-R1 - Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 84dB @ 1.5V, 10cm Surface Mount Solder Pads

    1 pcs : PKLCS1212E4001-R1 - Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 84dB @ 1.5V, 10cm Surface Mount Solder Pads

    Allparts-UK/DG/PKLCS1212E4001-R1
    £9.89
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 84dB @ 1.5V, 10cm Surface Mount Solder Pads
    Product Details
    Murata Electronics
    Allparts-UK/DG/PKLCS1212E4001-R1
    PKLCS1212E4001-R1
    10 Items

    Data sheet

    Manufacturer
    Murata Electronics
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    4kHz
    Series
    PK
    Mounting Type
    Surface Mount
    Input Type
    Zero-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    25V (Max)
    Technology
    Piezo
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    PKLCS12
    Size / Dimension
    0.472' L x 0.472' W (12.00mm x 12.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    84dB @ 1.5V, 10cm
    Current - Supply
    -
    Port Location
    Side
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.118' (3.00mm)
    Voltage - Rated
    1.5 V
