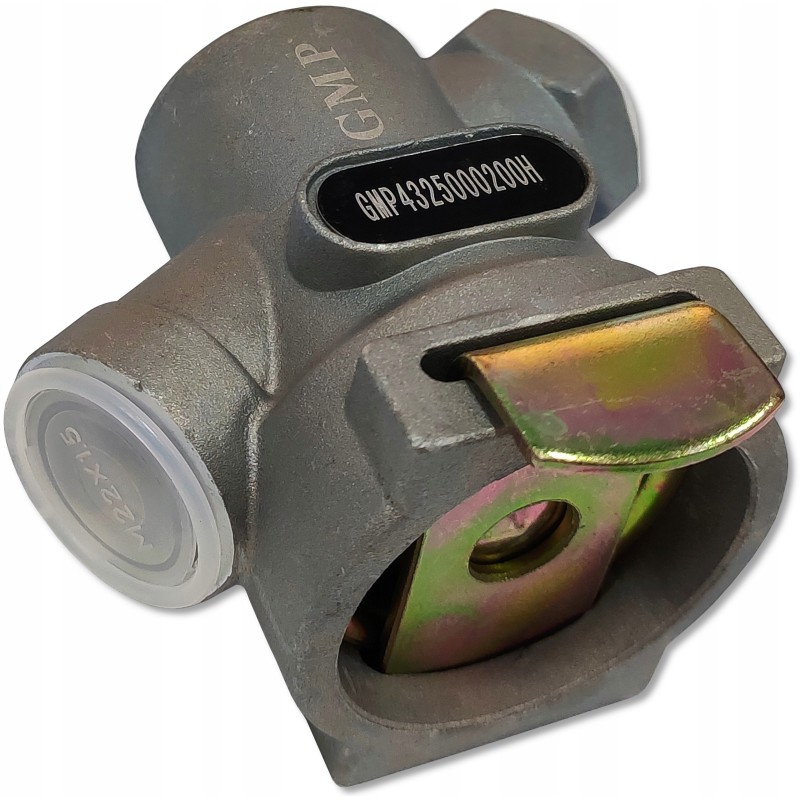

Air filter valve on the m22x1 5 d 35 line

Air filter valve on the M22x1.5 pipe SKRAW-MET CODE: [2389] Used in agricultural trailers AUTOSAN SANOK D-732, D-35, D-47, D-50, D-83 and special trailers such as spreaders, slurry tankers and in other trailers and machines with an axle with an air brake. Also in MAN, DAF, MB, MERCEDES, SCANIA trucks. Intended use: Protection of the pneumatic braking system against dirt. Technical specifications: Internal threads: M22x1.5

Max. working pressure: 20 bar

Free passage: Ø12 mm = 1.13 cm2

Filter pore width: 80 to 140 μm

Temperature range: -40 °C to +80 °C

Permissible medium: Air

Please pay attention to this to allow enough space to remove the filter element.
