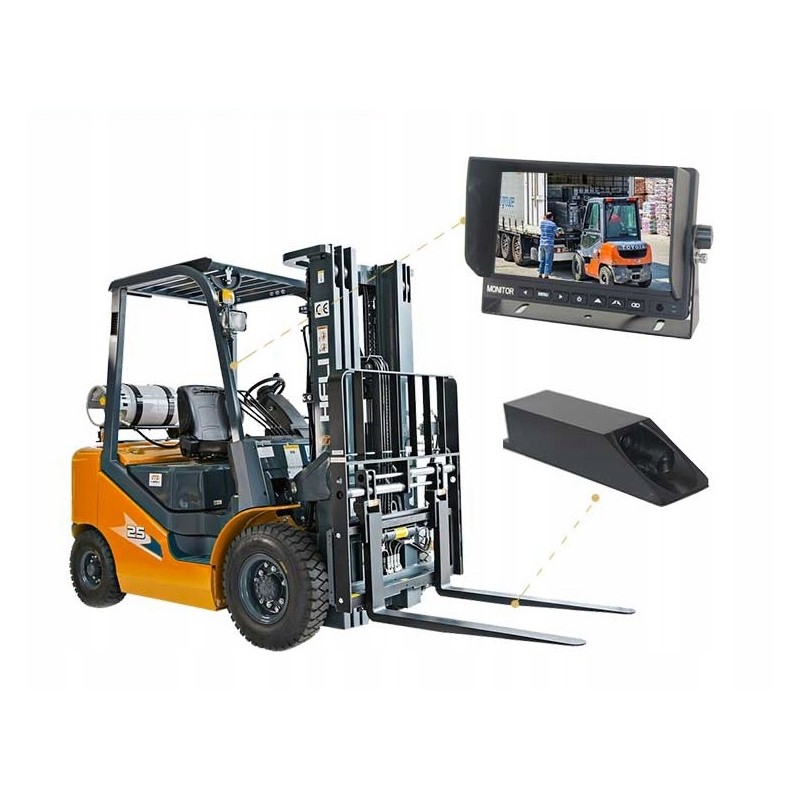

Wireless forklift kit ahd 1080p

Professional wireless forklift kit AHD 1080PThe most important features:

AHD 1080P system

High image quality thanks to the use of an image sensor with a resolution of 1920x1080 pixels in the camera

Very convenient and quick magnetic mounting of the camera on the 'forks'

The camera is equipped with a battery that provides 6 hours of continuous operation when fully charged and a DC socket for powering and charging the camera (12-24V)

A laser pointer placed in the camera helps the operator precisely aim at the pallet

The monitor allows you to program a maximum of 4 cameras

A monitor with a reinforced structure (Heavy Duty series) and a screen with a 7" image diagonal works well even in very difficult conditions. The sun visor ensures good vision even in unfavorable lighting conditions in the cabin.

The monitor is designed to support 1 to 4 wireless AHD 1080P cameras.

The monitor can generate markers in the image to help determine the distance to the target.

Monitor parameters:

Image diagonal: 7'

Resolution: 1024 RGB x 600

Format 16:9

Support for 4 AHD 1080P cameras

Operating frequency 2400–2483.5MHz

H.264 decompression

Reception sensitivity: -89dB@4MHz

PAL format/ NTSC AHD

Built-in SD card recorder

SD card support: 16-128Gb

File size: 3.3Mb/min

MP4 file format

Input voltage DC 9 - 30V

Operating temperature -20 ~ +70ºC

Camera parameters:

Sensor: CMOS 1/2.7'

TV system: PAL/NTSC AHD

Resolution: 1080P

Horizontal viewing angle over 40°

Built-in laser pointer: 1 pc

Work in day and night: YES

Transmission frequency 2400-2483.5 MHz

Transmission band 8 MHZ BER<,1E-3

Working time on the built-in battery: 6 hours (when fully charged)

Automatic energy saving

Possibility of operation on wired power supply

Power supply: from 12 to 24V

Casing: Black aluminum alloy IP69K

Range in an open area: 50 meters

Dimensions: 87 x 75 x 77 mm

Operating temperature: -20°C to +70 °C
