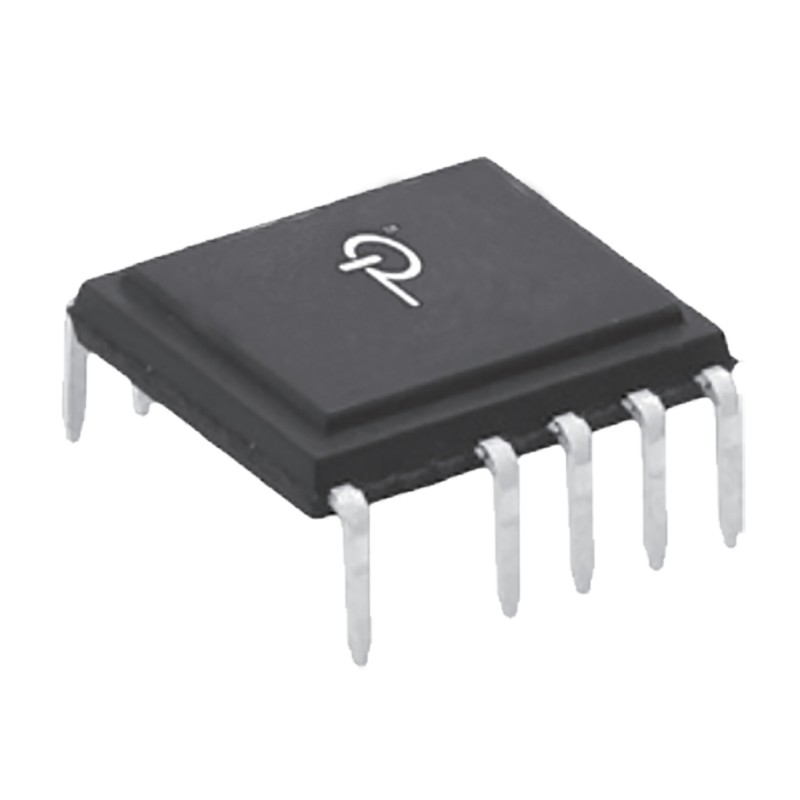

50 pcs - LNK6773V Power Integrations, AC-DC Converter, 12 V dc 11-Pin, eDIP-12B LNK6773V

LinkSwitch-HP series Offline AC-DC ConvertersThe Power Integrations LinkSwitch-HP family of flyback power supply ICs incorporate a primary side regulated controller and high-voltage power MOSFET in a single package. These devices feature ±5% CV accuracy, selectable current limit, programmable latching or hysteretic over-voltage, under-voltage and over-temperature protection, fast AC reset, and programmable shutdown delay time.Package options:• eSIP-7C package for vertical orientation with minimum PCB footprint size and simple heat sink mounting using clip or adhesive pad• eSOP-12B package for low-profile surface mounted ultra-thin designs with heat transfer to PCB via exposed pad and SOURCE pins, both wave and IR reflow soldering supported• eDIP-12B package for low-profile through-hole mounted ultra-thin designs with heat transfer to PCB via exposed pad or optional metal heat sink• Multi-mode control maximizes efficiency over full load range• No-load consumption below 30 mW at 230 VAC• >,75% efficiency with 1 W input at 230 VAC• >,50% efficiency with 0.1 W input at 230 VAC• Dramatically simplifies power supply designs• Eliminates opto-coupler and all secondary control circuitry• ±5% or better output voltage tolerance• 132 kHz operation reduces transformer and power supply size• Compensation over line limits overload power• Frequency jittering reduces EMI filter cost• Fully integrated soft-start for minimum start-up stress• Auto-restart limits power delivery to 3% during overload faultsAC-DC Converters, Power Integrations
