    10 pcs : PIC18F16Q41-E/P - 8-bit Microcontrollers - MCU Op Amp, 64KB Flash, 4K RAM, 512 EEPROM, 12b ADCC, 8b DAC, DMA, 16-bit PW
    • 10 pcs : PIC18F16Q41-E/P - 8-bit Microcontrollers - MCU Op Amp, 64KB Flash, 4K RAM, 512 EEPROM, 12b ADCC, 8b DAC, DMA, 16-bit PW

    10 pcs : PIC18F16Q41-E/P - 8-bit Microcontrollers - MCU Op Amp, 64KB Flash, 4K RAM, 512 EEPROM, 12b ADCC, 8b DAC, DMA, 16-bit PW

    10(Allparts)579PIC18F16Q41EP

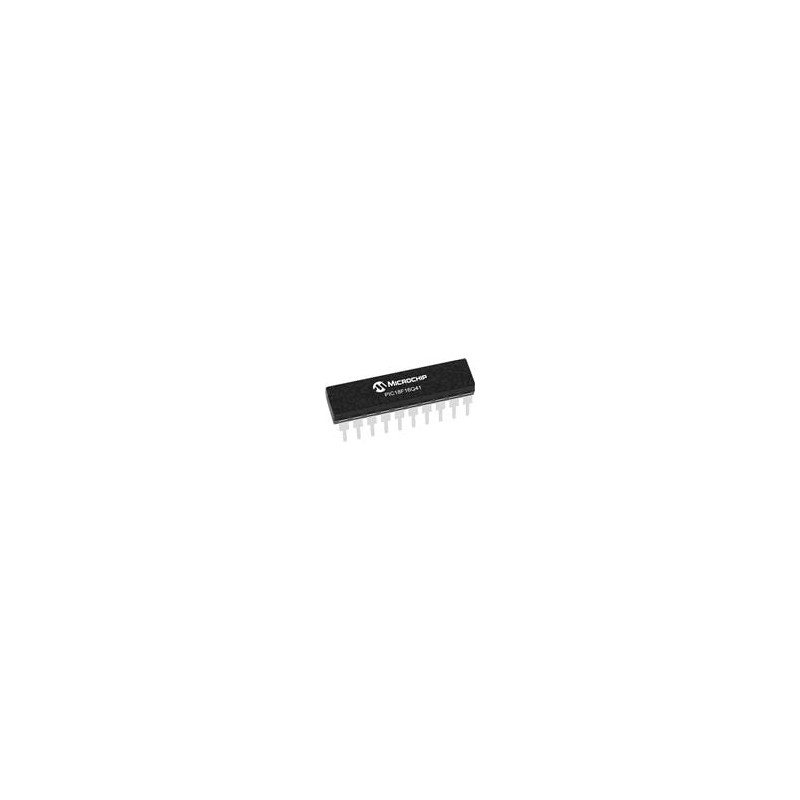

    10 pcs : PIC18F16Q41-E/P - 8-bit Microcontrollers - MCU Op Amp, 64KB Flash, 4K RAM, 512 EEPROM, 12b ADCC, 8b DAC, DMA, 16-bit PWM, PPS, UART, SPI/I2C
    £57.90
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    PIC18-Q41 MCUs Microchip Technology PIC18-Q41 MCUs are available in 14/20-pin devices for real-time control and sensor applications. These MCUs feature a 12-bit ADC with Computation (ADCC) and Capacitive Voltage Divider (CVD) techniques for advanced capacitive touch sensing, averaging, filtering, oversampling, and threshold comparison. The PIC18-Q41 MCUs come with two 8-bit DAC modules, an operational amplifier, and a 16-bit PWM module that provides dual independent outputs on the same time base. These devices support 4KB of data SRAM memory, 64KB of program flash memory, 512 Bytes data EEPROM, Device Information Area (DIA), and Device Characteristics Information (DCI) area. The PIC18-Q41 MCUs operate at 1.8V to 5.5V supply voltage, -40°C to 85°C industrial, and -40°C to 125°C extended temperature ranges.
    Product Details
    MICROCHIP TECHNOLOGY
    10(Allparts)579PIC18F16Q41EP
    PIC18F16Q41-E/P
    10 Items

    Data sheet

    Manufacturer
    Microchip
    Series
    PIC18F06/16Q41
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Through Hole
    Product Type
    8-bit Microcontrollers - MCU
    Interface Type
    I2C, SPI, UART
    Package/Case
    PDIP-20
    Core
    PIC18
    Product Category
    8-bit Microcontrollers - MCU
    Program Memory Size
    64 kB
    Packaging
    Tube
    RoHS
    Details
    Data RAM Size
    4 kB
    Maximum Clock Frequency
    64 MHz
    ADC Resolution
    12 bit
    Number of I/Os
    18 I/O
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    5.5 V
    Data Bus Width
    8 bit
    Brand
    Microchip Technology
    Data RAM Type
    SRAM
    Data ROM Size
    512 B
    Data ROM Type
    EEPROM
    Number of ADC Channels
    17 Channel
    Product
    MCUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    22
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer, Windowed
    DAC Resolution
    8 bit
