aviation-automatic-fuse-3a

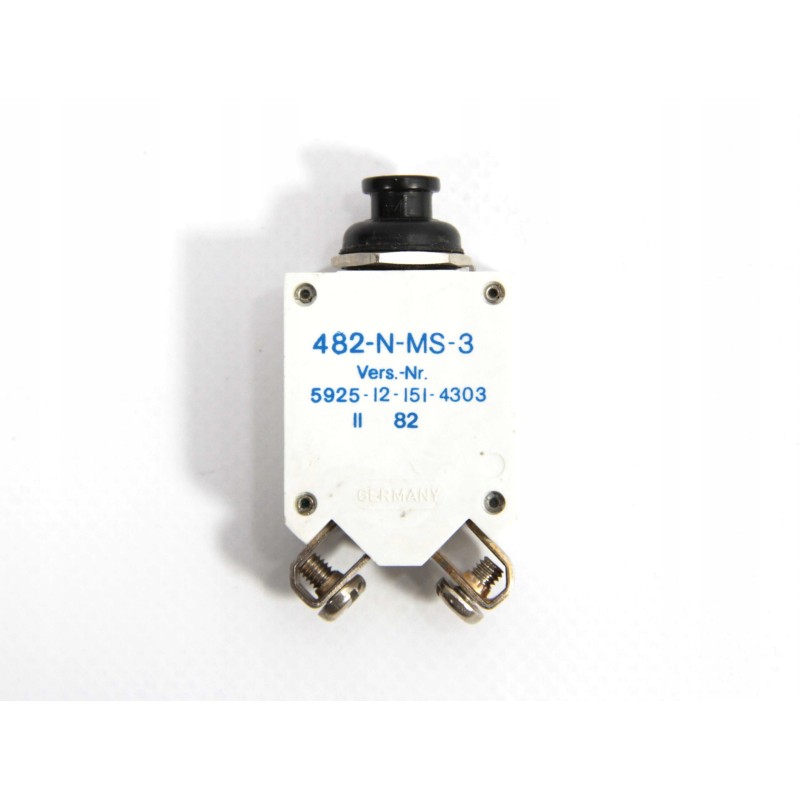

offer you a professional automatic fuse, intended for use in aircraft.

The offered component is of very good quality, it has an airtight body made of hard, temperature-resistant material.

The fuse lever has a characteristic white sector, which is visible when the fuse is activated.

The fuse can be used like a switch, after pulling the lever it disconnects the circuit.

The fuse has one disconnectable circuit with a nominal current of 3A.

The fuse is of the time-delay type, which means that momentary overloads such as switching on a light bulb or an engine do not disconnect the fuse.

Fuses of this type are used are currently used, among others, in Boeing aircraft.

The maximum nominal operating voltage of the fuse is 200V (220V) alternating current.

The fuse is also designed to operate at direct voltages up to 60V.

Fuse mounting in a hole with a diameter of 12 mm.

The mounting nut is rubber sealing the fuse lever.

Fuse dimensions:

Height 30 mm

Width 19 mm

Length 48 mm

The fuse is brand new, German made, military made.

We provide a start-up warranty.
