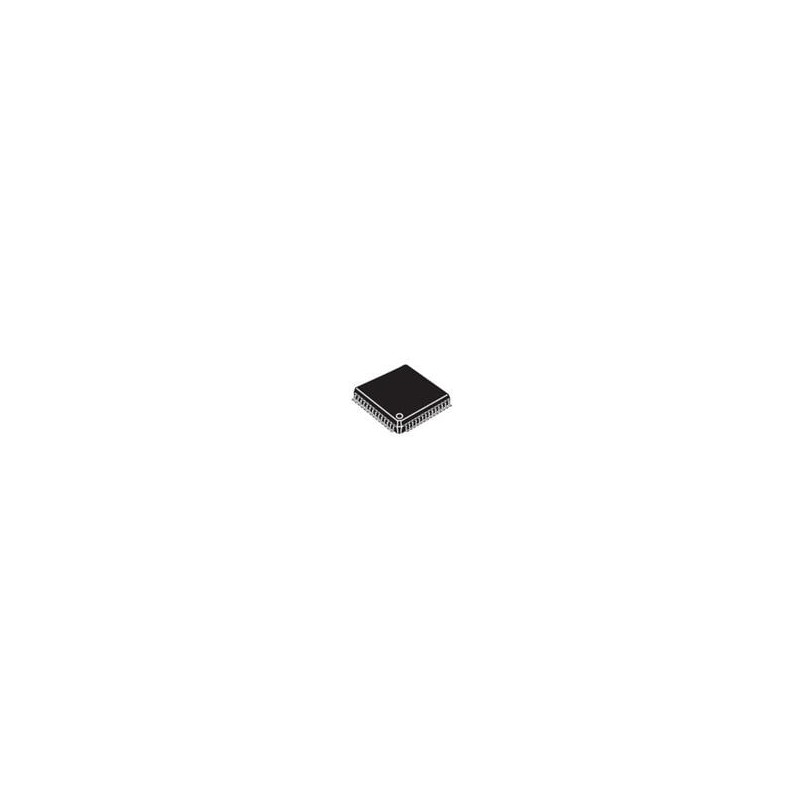

    10 pcs : R5F513T5ADFL30 - 32-bit Microcontrollers - MCU 32BIT MCU RX13T 128K LQFP48 -40TO+85C
    • 10 pcs : R5F513T5ADFL30 - 32-bit Microcontrollers - MCU 32BIT MCU RX13T 128K LQFP48 -40TO+85C

    10 pcs : R5F513T5ADFL30 - 32-bit Microcontrollers - MCU 32BIT MCU RX13T 128K LQFP48 -40TO+85C

    10(Allparts)968R5F513T5ADFL#30
    10 pcs : R5F513T5ADFL#30 - 32-bit Microcontrollers - MCU 32BIT MCU RX13T 128K LQFP48 -40TO+85C
    £64.25
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    RX13T 32-Bit Microcontrollers Renesas Electronics RX13T 32-Bit Microcontrollers (MCUs) are optimized for single motor control applications. Equipped with RX Family RXv1 cores operating at 32MHz, a floating-point unit (FPU), an inverter control timer, and a 12-bit Analog-to-Digital Converter (ADC), the RX13T MCUs enable high-efficiency inverter control of brushless DC motors with one device. They are highly compatible with existing RX devices so it is easy to convert hardware and software from previous designs. The RX13T MCUs include integrated features such as a Programmable Gain Amplifier (PGA), comparator, data flash, and high-speed on-chip oscillator (HOCO). These on-chip features can help reduce board area usage and the BOM components in the design.
    Product Details
    Renesas Electronics
    10(Allparts)968R5F513T5ADFL#30
    R5F513T5ADFL#30
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Width
    7 mm
    Height
    1.6 mm
    Length
    7 mm
    Series
    RX13T
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    32-bit Microcontrollers - MCU
    Interface Type
    I2C, SPI
    Package/Case
    LFQFP-48
    Core
    RX
    Product Category
    32-bit Microcontrollers - MCU
    Packaging
    Tray
    RoHS
    Details
    Data RAM Size
    12 kB
    Maximum Clock Frequency
    32 MHz
    ADC Resolution
    12 bit
    Number of I/Os
    37 I/O
    Supply Voltage - Min
    2.7 V
    Supply Voltage - Max
    5.5 V
    Data Bus Width
    32 bit
    Brand
    Renesas Electronics
    Data RAM Type
    SRAM
    Data ROM Size
    128 kB
    Data ROM Type
    ROM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    8 Channel
    Number of Timers/Counters
    1 x 16 bit
    Processor Series
    RX13T
    Product
    MCUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    250
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer
