3-section set, 80l, for auro, float, 1p, 1, 5m lines

15013116289847
SM-G
£453.66
Quantity
5 Items

Description

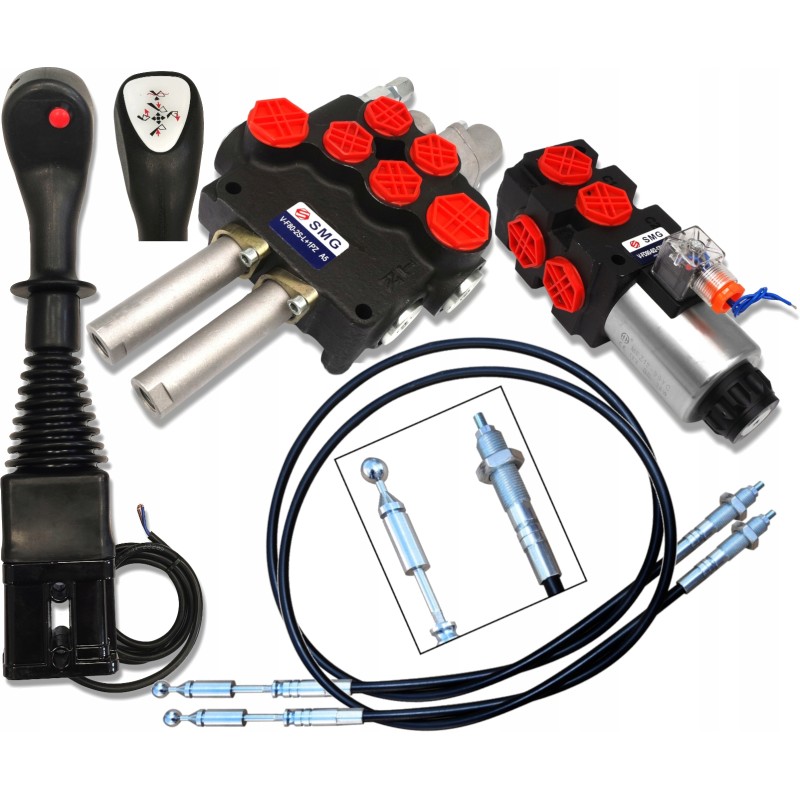

3-section hydraulic set 80L/min with a floating section and a latch for TURAKOD SKRAW MET: [8511] Manufacturer: SM-G (SKRAW MET GROUP) Set includes: ball joystick with 1 button [0171]

2x cable, length 1, 5m [0202]

hydraulic distributor for cables, 2 sections 80L/min - floating section + latch [1724]

solenoid valve - divider 6/2 12V 90L/min [1962]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket inclination) and one additional section after pressing a button.

The set has many advantages that influence dynamic, fast and safe control of the machine.

Can be used in agriculture, horticulture and forestry or construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR, 80L, FOR CABLES + FLOATING SECTION WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system and a floating (absorbing) chamber. It is characterized by compact structure, stable operation and high versatility.

It allows you to control from the cab (using cables and a joystick) two double-acting actuators or (after plugging one of the ports) single-acting actuators.

It is possible to connect them in series to an existing system (pressure sleeve required).

Thanks to the latch with a latch, the distributor is ideal for machines and devices where there is no need to constantly keep your hand on the joystick.

Manifold (high quality), monoblock, with a parallel arrangement and a floating (absorbing) chamber.

!ATTENTION! In a given distributor, the section with a latch is located in only one section with a FLOATING FUNCTION

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

The universal distributor is used in various types of machines such as: Cyklops Tury

Loaders

Plows

Forklifts and much more

Three-position slider (1 - 0 - 2) with a latch, i.e. it holds the position in the working position on its own

Neutral position 0 (joystick set vertically - the cable is loose), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in the forward diagonal position), the actuator piston rod extends.

Working position 2 (joystick set in the backward diagonal position), the actuator piston rod retracts.

Three-position slider (1 - 0 - 2) returns to the vertical position on its own on a spring

Neutral position 0 ( joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique position forward) the actuator piston rod extends.

Working position 2 (joystick set in a diagonal position backwards) piston rod the actuator retracts.

Connection: Power supply (P) BSP 3/4''

Return (T) BSP 3/4''

Output to sections BSP 1/2''

Connection BSP 3/4'

Technical specifications: Flow oil: 0 - 80 l/min

Maximum working pressure: 300 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

Equipped with a safety valve.

6/2 solenoid valve 12v 90 l/min with plug Manufacturer: SM-G (SKRAW MET GROUP) This solenoid valve is an ideal solution when the hydraulic distributor used (to control the actuator) lacks an additional section to control another actuator.

Used for hydraulic control, most often at the distributor 2-section, as a 3-section, e.g. gripper, crocodile, etc.

Up to 3 valves can be connected in series to one block using flanges.

High-quality solenoid valve, characterized by a compact structure, stable operation and high versatility.

Application: Manifold works perfectly in hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

Example application of the solenoid valve: two double-acting hydraulic cylinders controlled by one section in the distributor. Thanks to it (using an electric impulse caused by a button ), we can control two independent double-acting actuators.

This button is usually located on the control element, i.e. a lever or joystick.

Please take into account the fact that it does not allow you to control two actuators at the same time.

Technical data: Threads (BSP ): 3/4'

Maximum oil flow: 90 l/min

Voltage: 12 V

Maximum operating pressure: 315 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

CONNECTION: A1 - A2 POWER SUPPLY / RETURN (regardless of whether A1 or A2 will be return or power supply) B1 - B2 - C1 - C2 OUTPUTS FOR RECEIVERS (e.g. ACTUATORS) JOYSTICK WITH 1 BUTTON Designed for mechanical control of frame lifting, shovel inclination and bale grabber or crocodile.

Solid joystick enabling mechanical control of three-way hydraulic control valves of TURA (loader) using two cables and one button.

Allows for remote control (from the cab ) distributors that are located outside the cabin.

Application: Dedicated to control TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to installation. Technical specifications: Operating temperature: from -30°C / to +80°C

Cable opening Φ14 mm

Lock lever

M8 self-locking pin for cable attachment

Material: ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to block the movements of the joystick head to prevent accidental activation: Locked joystick head Unlocked joystick head Cable to control the 1.5 m ball distributor POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Ends: The end of the cable on the joystick side ends with a ball with a diameter of 14mm Cable end on the distributor side, cable body thread M16x1.5, slider thread M6x1.6

Product Details
SM-G
15013116289847
8511.1P.2x1.5M05
5 Items
New

Data sheet

Manufacturer
SM-G
Part Number
8511.1P.2x1.5M05
Machine Type
Crane, Crane, Lift, Generator, Excavator, Backhoe Loader, Crusher, Loader, Grader, Asphalt Paver, Dozer, Roller, Dumper, Compactor, Other
Machine Brand
Atlas, Bobcat, Bomag, Case, Caterpillar, Doosan, Fadroma, Hitachi, Hyundai, JCB, John Deere, Komatsu, Kubota, Liebherr, New Holland, O&K, Terex, Volvo, Wacker, Yanmar, Zeppelin, Other
