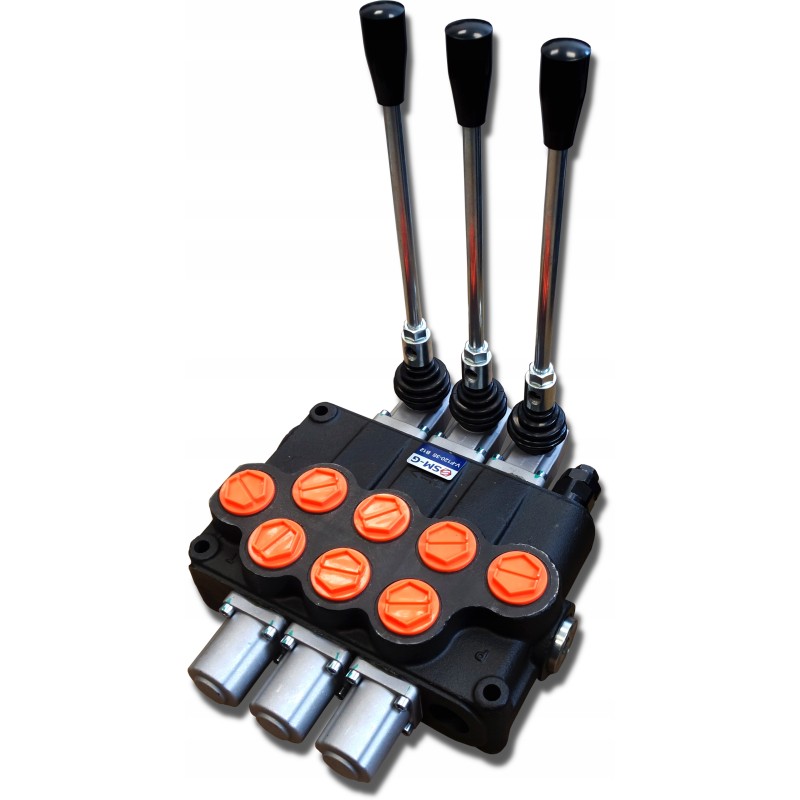

3-section hydraulic distributor, 120l, lever

3-SECTION HYDRAULIC DIVIDER 120LKOD SKRAW MET: [3586] Manufacturer: SM-G (SKRAW MET GROUP) The high-quality, monoblock distributor is characterized by a compact design, stable operation and high versatility.

Enables control of three double-acting actuators.

Possibility of serial connection to the existing system.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

The universal distributor is used in various types of machines such as: Cyclops

Turs

Loaders

Plows

Forklifts and many others

Three-position lever (1 - 0 - 2) on a spring returns to the vertical by itself

Position 0 neutral (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in oblique position forward), the actuator piston rod extends.

Working position 2 (lever set in the backward diagonal position), the actuator piston rod retracts.

Connection: Power supply (P) BSP 1''

Return (T) BSP 1''

Output for BSP 1'' sections

BSP 1' connection

Technical specifications: Oil flow: 0 - 120 l/min

Maximum working pressure: 200 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80℃

Equipped with a safety valve.
