3-section 80l set for round distributor and divider

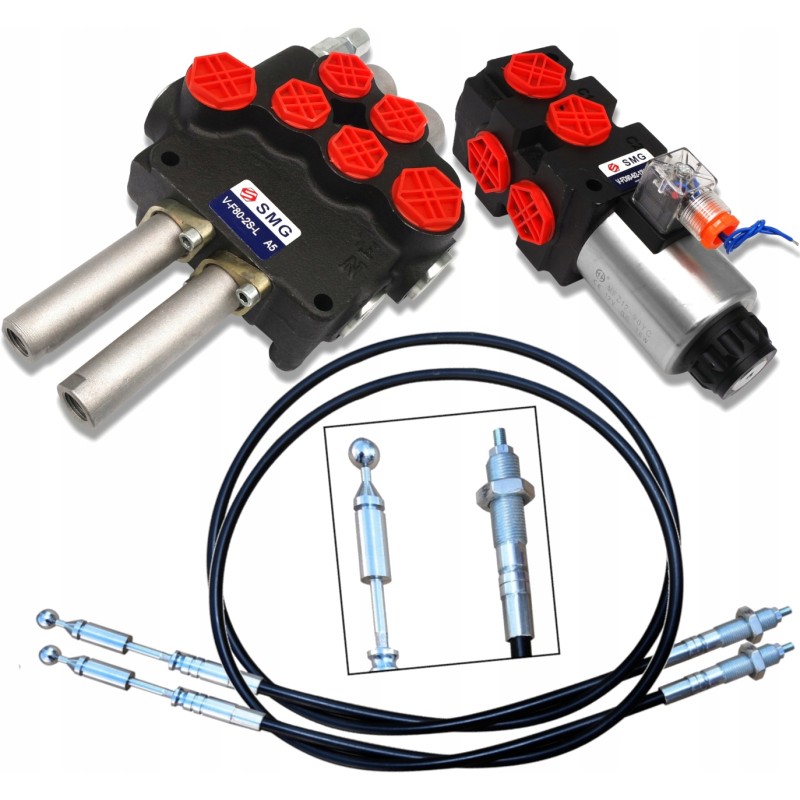

3-section hydraulic set 80L/min for TURAPufacturer: SM-G (SKRAW MET GROUP)SKRAW MET CODE: [8475]Set composition: 2x cables 2m long [0203]

hydraulic distributor for 2-section cables 80L/min [1603]

solenoid valve - divider 6/2 12V 90L/min [1962]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket inclination) and one additional section after pressing a button.

The set has many advantages that influence dynamic, fast and safe control of the machine.

Can be used in agriculture, horticulture and forestry or construction. It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

HYDRAULIC DISTRIBUTOR, 2 SECTION 80L, WITH LINKS Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor characterized by compact structure, stable operation and high versatility.

It allows you to control two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required).

Controlled from the cabin using cables and a joystick.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

Universal distributor, can be used in various types of machines such as: Cyclops

Turns

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) on a spring returns to the vertical by itself

Neutral position 0 (joystick set vertically - the cable is loose), the actuator piston rod is stationary - the oil goes to the overflow.

Working position 1 (joystick set in an oblique position forward), the actuator piston rod extends.

Working position 2 (joystick set in an oblique position backwards), the actuator piston rod retracts.

Connection: Power supply (P) BSP 3/4''

Return (T) BSP 3/4''

Outlet to sections BSP 1/2''

BSP connection 3/4'

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 250 bar

Permissible temperature ambient: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with a safety valve.

Solenoid valve 6/2 12v 90 l/min with plug Manufacturer: SM-G (SKRAW MET GROUP)This solenoid valve is an ideal solution when the hydraulic distributor used (to control an actuator) lacks an additional section to control another actuator.

Used for hydraulic control, most often with a 2-section distributor, as a 3-section, e.g. gripper, crocodile, etc.,

For one block can be connected in series using flanges, up to 3 valves.

High-quality solenoid valve, characterized by compact structure, stable operation and high versatility.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

Example of use of the solenoid valve: two double-acting hydraulic actuators controlled by one section in the distributor. Thanks to it (using an electric impulse caused by a button), we can control two independent double-acting actuators.

This button is usually located on the control element, i.e. a lever or joystick.

Please take into account the fact that it does not allow you to control two actuators at the same time.

Technical data: Threads (BSP): 3/4'

Maximum oil flow: 90 l/min

Voltage: 12 V

Maximum working pressure: 315 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

CONNECTION: A1 - A2 POWER SUPPLY / RETURN ( regardless of whether A1 or A2 is a return or power supply) B1 - B2 - C1 - C2 OUTPUTS FOR RECEIVERS (e.g. ACTUATORS) Cable to control the ball-type distributor 2 m POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14mm

The end of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
