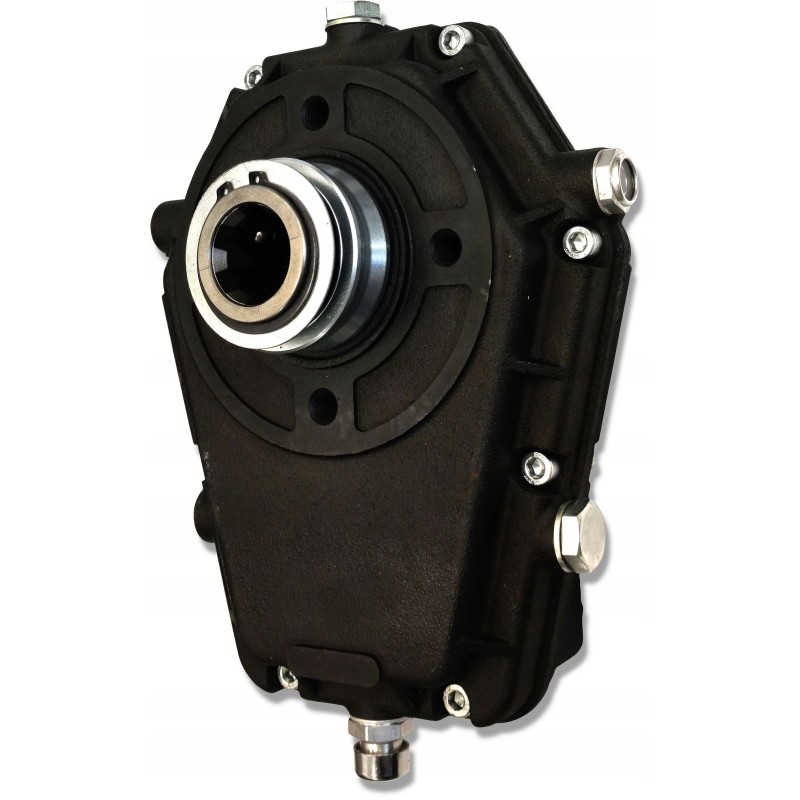

Powerful multiplier of 2-way gear pumps

​MULTIPLICATOR WITH A RATIO OF 1:3.8 FOR PISTON AND GEAR PUMPS​SKRAW-MET CODE: [2848]Power transfer shaft gear with a 1.3/8' profiled sleeve, 6-piece (quick-closing). The gearbox is delivered without oil. Ideally suited for driving PISTON and GEAR hydraulic pumps in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with a PTO output.

The gearbox is mounted on the 1.3/8' PTO sleeve with a latch, this solution means that it can be mounted or removed quite quickly if it turns out that we need a PTO shaft to connect the PTO shaft from another machine.

​​Gearbox dedicated to driving pumps with flange suitable for commercial vehicles.​

​Technical data of the gearbox:​

Gear ratio: 1:3.8

Max power consumption (kW): 37

Max number of revolutions (rpm):

Input: 540

Output: 2052

Torque (da Nm):

Input: 66.0

Output: 16.6

Material:

body - cast iron

gears - steel

Requires filling with gear oil.

Recommended oil: SAE 90

It has a sight glass for checking the gear oil level.

When using for the first time, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.

We have pumps matching this gear in other auctions.​
