2-section distributor 80l 2p joystick for aurochs

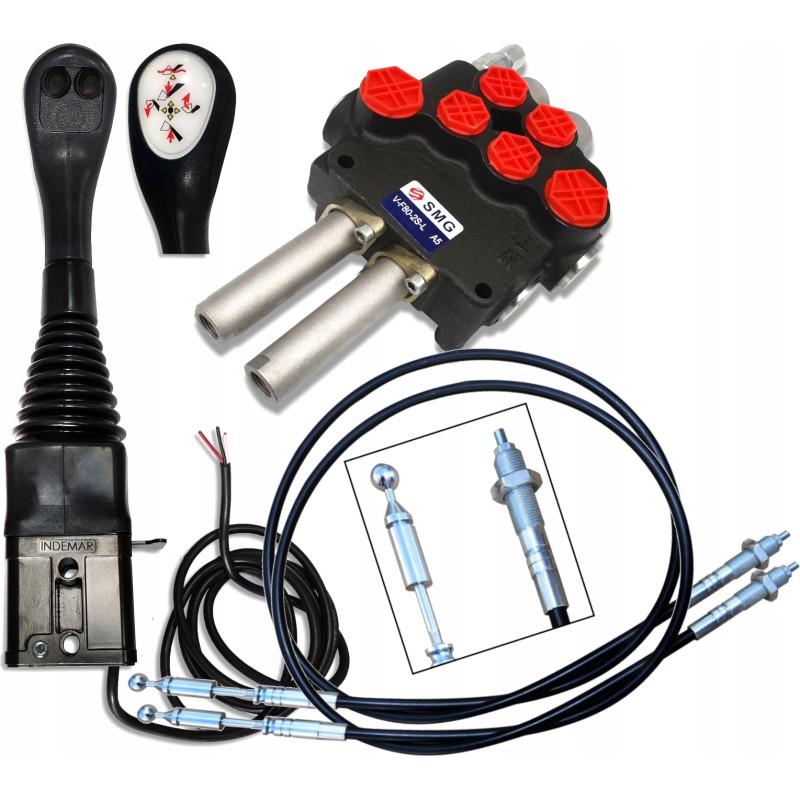

2-section hydraulic set 80L/min for TURAKOD SKRAW MET: [8489] Manufacturer: SM-G (SKRAW MET GROUP) Set includes: ball joystick with 2 buttons [0172]

2x 2m long cable [0203]

hydraulic distributor for 2-section cables 80L/min [1603]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt).

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, axes, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION 80L HYDRAULIC DISTRIBUTOR WITH LINKS Manufacturer: SM-G (SKRAW MET GROUP )The high-quality, monoblock distributor is characterized by a compact structure, stable operation and high versatility.

Enables the control of two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required).

Control from the cabin using cables and joystick.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

Universal distributor, can be used in various types of machines such as: Cyclops

Tours

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) on a spring returns to the vertical by itself

Neutral position 0 (joystick set vertically - the cable is loose), the actuator piston rod is stationary - the oil goes to the overflow.

Working position 1 (joystick set in an oblique position forward), the actuator piston rod extends.

Working position 2 (joystick set in an oblique position backwards), the actuator piston rod retracts.

Connection: Power supply (P) BSP 3/4''

Return (T) BSP 3/4''

Outlet to BSP 1/2'' sections

BSP 3/4'' connection

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 250 bar

Permissible ambient temperature : -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

Equipped with a safety valve.

JOYSTICK WITH 2 BUTTONS Designed for mechanical control of frame lifting, shovel inclination and bale grabber or crocodile + additional fourth section.

A solid joystick enabling mechanical control of the four-way hydraulic control valves of TURA (loader) using two cables and two buttons.

Allows for remote control (from the cab) of distributors that are located outside the cab.

Application: Dedicated to controlling TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install. Technical specifications: Operating temperature: from -30°C / to +80°C

Hole for Φ14 mm cable

Locking lever

M8 self-locking pin for cable attachment

Material: ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to lock the joystick head movements to prevent accidental activation: Locked joystick headUnlocked joystick headCable to control the ball distributor 2m POLISH product SUPER DURABLEThe cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick/lever.

It can be used in agriculture, horticulture, forestry, construction and the broadly understood industry.

Ends: End of the cable on the joystick side with a ball with a diameter of 14 mm

End of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
