140x connector hydraulic tee type bbb 18 18 18

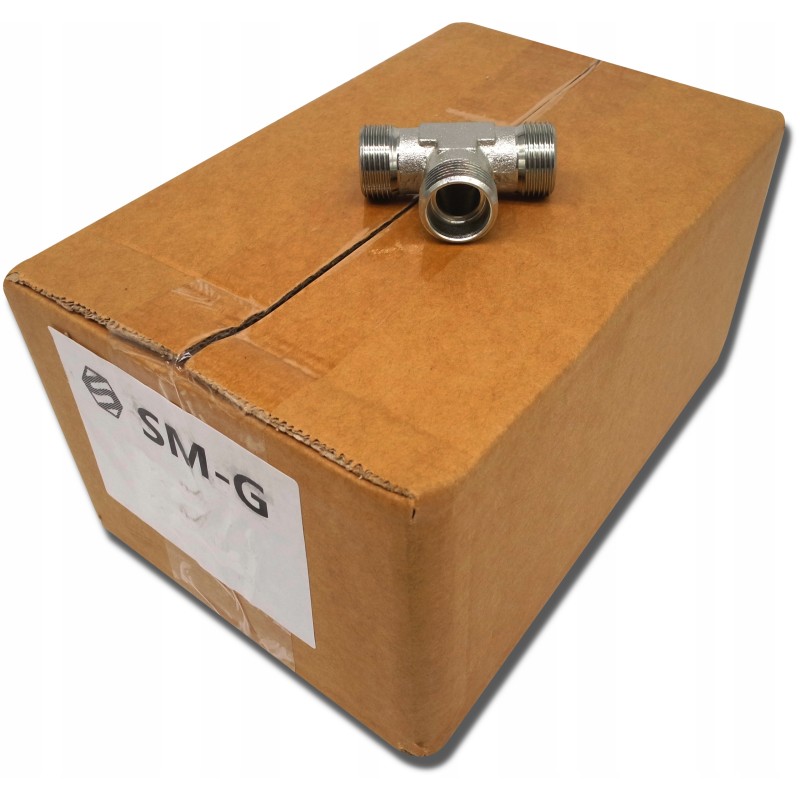

140x BBB hydraulic connector - tee M18x1.5 - M18x1.5 - M18x1.5 12L (FULL FACTORY PACKED CARTON) SKRAW MET CODE: [7657] Manufacturer: SM-G (SKRAW MET GROUP) Tee connector in a standardized lightweight version with self-cones — sealing when tightened. Due to the lack of rubber ED seals and space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connectors that can be purchased at our other auctions.

Application: The connector is designed to connect three wires or to connect with other connectors with the same sealing cone - at an angle of 90°

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 10 mm M1 thread: external metric M18x1.5

M2 thread: external metric M18x1.5

M3 thread: external metric M18x1.5

Nominal pressure: 180 bar Maximum pressure: 230 bar

Fluid type: hydraulic oil

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant
