13 us gpm 3600 gc hi low ci g pm

13 US GPM @ 3600 GC HI-LOW CI G PM 1'' BMP TUBE INLET & 1/2 NPTF OUTS

1300486

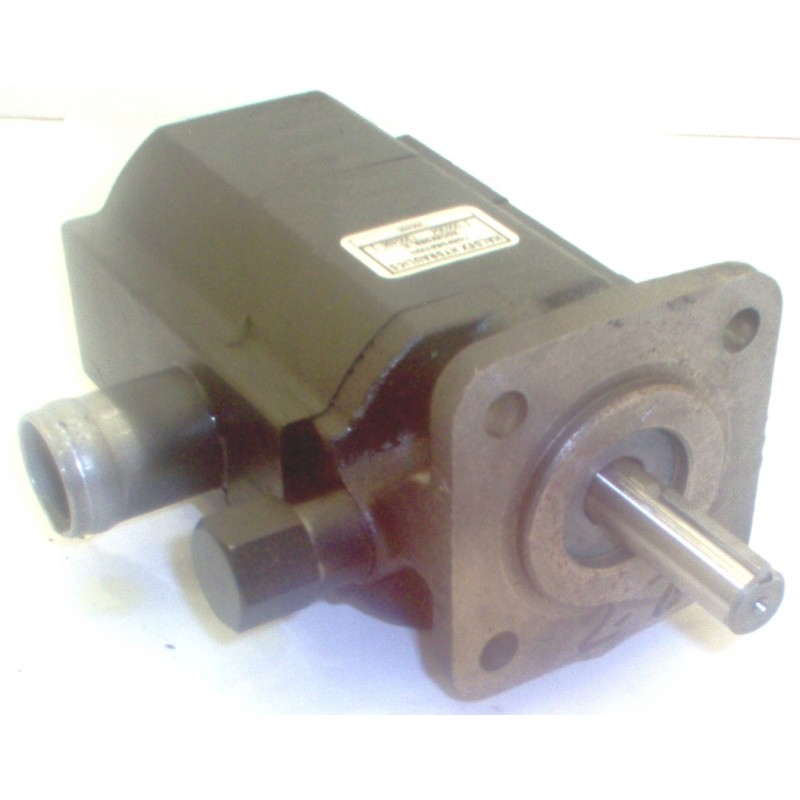

HYDRAULIC GEAR PUMP1'' BMP TUBE INLET & 1/2 NPTF OUTS

1300486

HYDRAULIC GEAR PUMP 13 US GPM - .194 CUBIC INCHES, .647 CUBIC INCHES CLOCKWISE, CLOCKWISE 1/2' DIAMETER SHAFT, 1.5' LONG, 4 BOLT SAE AA 2' x 2' HOLE CENTRES SQUARE MOUNTING FLANGE 1' TUBE INLET, 1 /2' NPT PORT OVERALL LENGTH FACE OF FLANGE TO FACE OF REAR COVER: 5.16', FACE OF FLANGE TO CENTER OF OUTLET PORT: 4.28', FACE OF FLANGE TO CENTER OF INLET PORT: 2.78'

Equivalent pump to replace Haldex original

Manufacturer: Originally HALDEX: 1300486

Comparator code: 1300486, NBC-13 BMP&NPTF
