12v hydraulic winch control kit

HYDRAULIC WINCH CONTROL KIT 12V SKRAW-MET CODE: [2248] Hydraulic winch control kit - perfect for delivery vans, 4x4 off-road vehicles, ATV / UTV vehicles, and is used to engage an electric winch.

It is used in hydraulically powered winches - which are available on our other auctions.

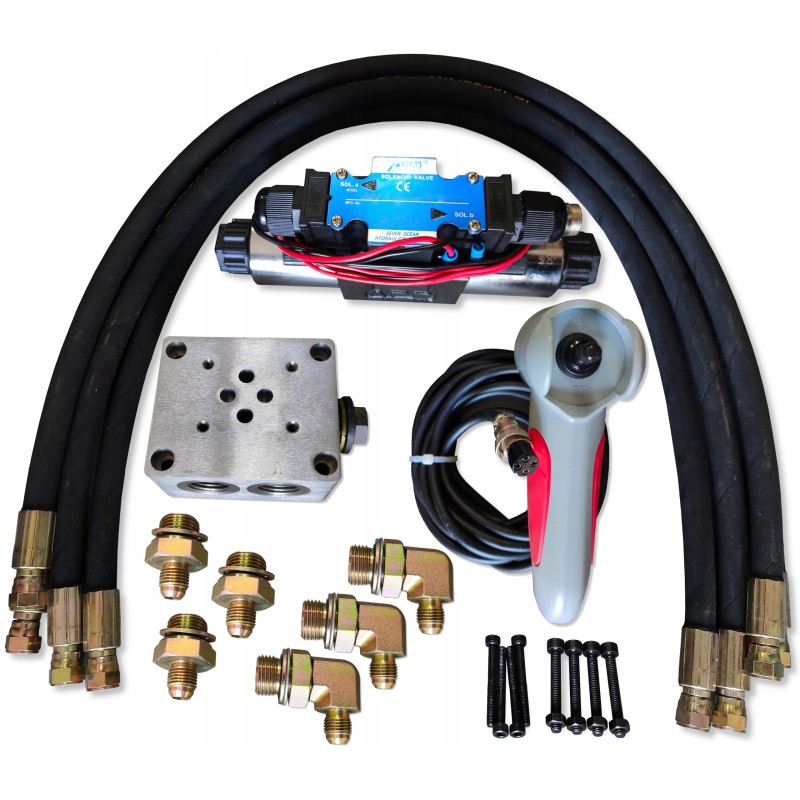

The set includes: Reductions with gasket (3x angular, 3 straight)

4x pressure lines

Oil distributor

Solenoid valve (24V power supply)

Set of mounting screws

Cable remote control

Solenoid directional control valve Symbol: DSV-G02-8C-DC12-90Available power supply: 12VDC

Dual solenoid valves.

Max. Flow rate: 50 l/min 13.2 GPM

Max. Working pressure: 5000 PSI (350bar)

Max. Back pressure: 3190 PSI (220bar)

Ambient temperature range: -15˚C~+50˚C

Hydraulic fluid temperature: -15˚C~+70˚C

Viscosity range: 15~400 mm²/S

Cable remote controlA new model of wired remote control for hydraulically powered winches.

convenient to use

resistant to mechanical damage

Application: winches

Oil divider (divider) Valve flow divider - used to divide the flow even in the case of large pressure differences, and also for connecting streams in the opposite direction.

High accuracy under load and pressure imbalance

High flow efficiency

Max pressure: 350 bar

Internal threads in the body: 1/2'' [BSP]

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Straight and angular nipples (reductions) Set of mounting screws (with nuts)
