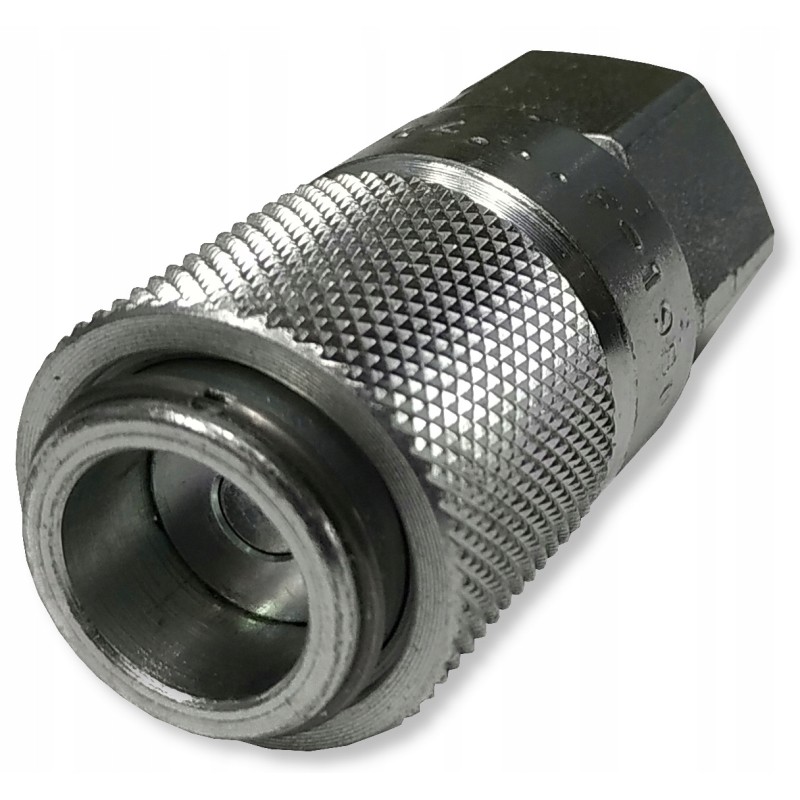

Screwed quick connector 1 4 inch 470 bar faster case

SCREWED QUICK MEASURING COUPLING 1/4'' NPT FASTER, SKRAW-MET CODE: [1920] Application: FASTER quick measuring coupler with flat seal, used to measure and control pressure in hydraulic systems, mainly CAT or CASE - but also works perfectly in other machines and devices hydraulically powered.

Can be used in agriculture, horticulture, forestry and construction.

Connectors with a flat seal do not leak or release air when connecting and disconnecting. Cannot be connected under pressure. Technical data: G1 thread: internal inch 1/4' NPT

Wrench opening : 21mm

Nominal flow rate l/min: 2

Width. nominal: DN 06

Maximum pressure: 470 bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Symbol: DF04-14 NPT FIn our other auctions, you will receive measurement cables matching these connections. We also have pressure gauges and diagnostic and measurement sets that allow you to constantly monitor the condition of the hydraulic system or receiver (e.g. actuator).
